Marine Components for Sale

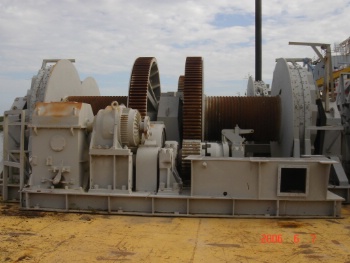

(2) DOUBLE DRUM WINCHES  (Ref#3977)

Manufactured in Japan by Tokyo Kikai Co., winches hold 5000’ of 3” cable or 8000’ of 2-1/2” cable, brake ratchet capacity 828,000 lbs, emergency ratchet release under tension between 200,000 and 400,000 lbs., Rated loads 400,000, pounds at 19' per minute 100,000-pounds at 76' per minute, requires (2) EMD D79MB 800 hp electric motors (no motors included), located Louisiana  Price:  $175,000 each

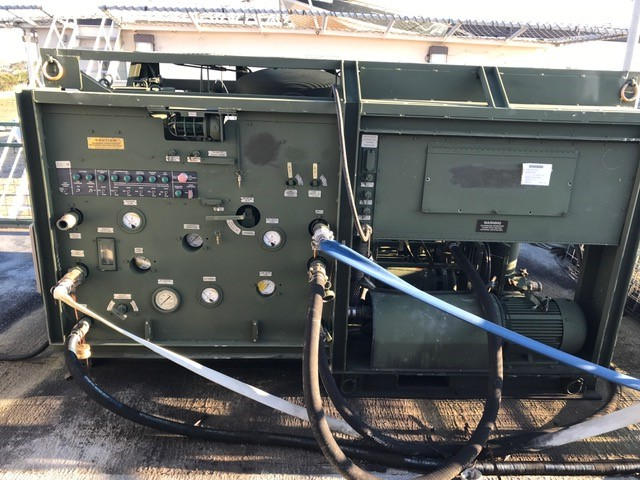

600 GPH WATER MAKER (Ref#3026)

Built 2007. US Navy Surplus. Manufactured by Highland Engineering, Howell Michigan. Process: reverse osmosis, capacity 600 GPH. Solid state controls. New - never in service. Spare parts, filters, chemicals. Powered by 25 HP 460/230 AC motor, complete with 30kw generator with 1500 hours. Both skid mounted. Dimensions and weights: Weight 6,030 lbs, Length 114", Height 67", Width 83". Located Louisiana. Price for Both: $37,500

(2) LOADING RAMPS  (Ref#1666)


a.  160’ x 27’ large hydraulic loading ramp, new – never used, heavy duty steel contruction Price:  $350,000
b.  75’ x 27’ medium loading ramp, new – never used, heavy duty steel construction  Price:  $175,000

Located in Hawaii - cost $3,400,000 new

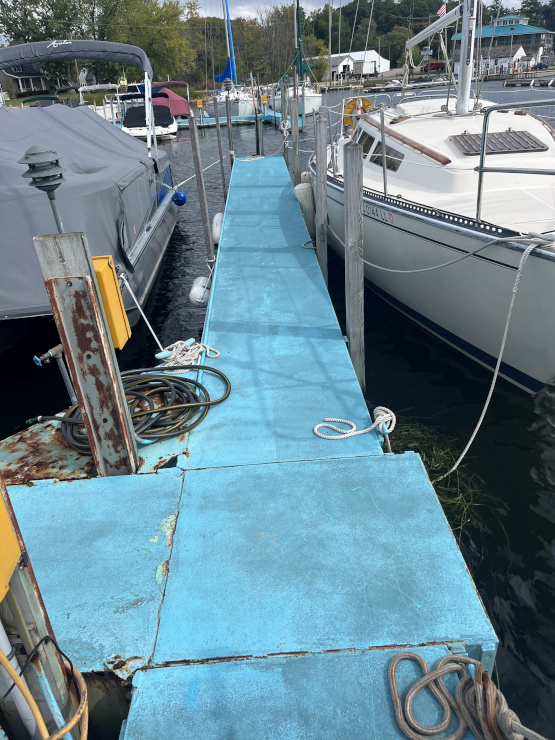

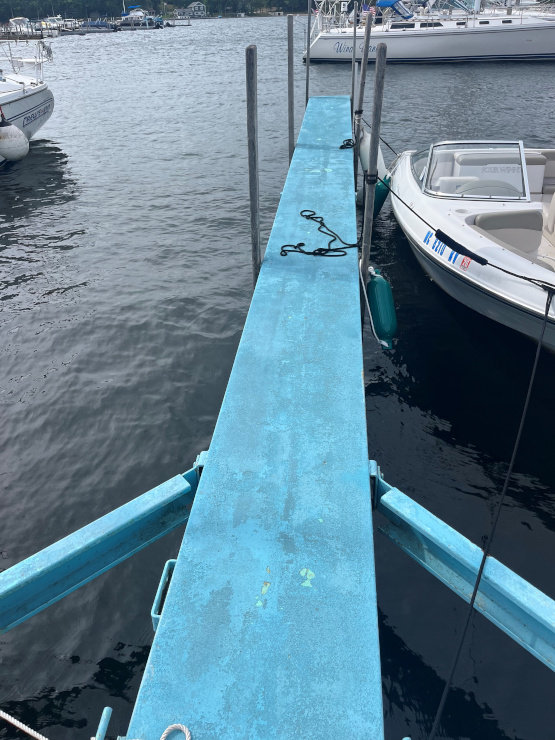

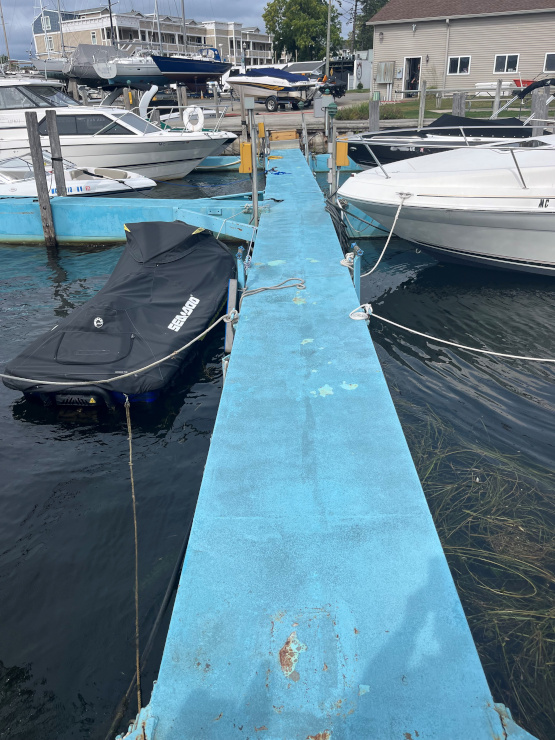

SETS OF T-DOCKS  (Ref#4065)


(East Set) MAIN 57’ LONG, (2) 30’ FINGERS, (1) 25’ FINGER, (3) 20’ FINGERS
Main walkway is 30” wide and 24” high
Fingers are 24” x 24”
They are all steel
(West set)  MAIN 62’ LONG, (3) 30’ FINGERS, (2) 25’ FINGERS, (1) 20’ FINGER
Main walkway is 30” wide and 30” deep
Fingers are all steel 24” wide and 30” deep
Includes 5 electrical boxes with (2) 30 amp receptables
Lights and wayer hook ups
Used in fresh water only
Located Michigan – 4 truck loads
Price loaded on trucks:  $21,500

SKAGIT TEN POINT MOORING SYSTEM  (Ref#584)
WMD-44 specifications:
2-3/4” diameter of ABS chain
Cast steel wildcat with standard five-whelp design for ABS chain
800,000 max pounds wildcat brake holding power
72” diameter x 12” width wildcat brake dimensions
Wildcat clutch: air operated jow clutch on the pinion.  Manual override is provided.
Air actuated chain stopper will hold and release loads in excess of the breaking strength of 2-3/4” ABS chain.
Approximate weight:  single wildcat: 52,000 lbs.,  Double wildcat 87,000 lbs.
(4) Skagit model WMD-44 double wildcat anchor windlasses, each consisting of two side-by-side units (one with motor and one less motor), arranged to be coupled together and powered by P&E 350 HP electric motors
(2) Skagit model WMD-44 single wildcat anchor windlasses powered by P&H 350 HP electric motors.
(2) Control cab assemblies (one cab to control two double and one single windlass)
(10) Skagit model DCF-44 deck mounted bullseye chain fair-leads for 2-3/4” chain
(1) Martin Decker tension indicating system (calibrated to exceed break strength of a 2-3/4” chain.
PRICE ON REQUEST

ICE 80S PILE HAMMER  (Ref#1230Marine)  80,000 ft/lbs., minimum energy 32,000 ft/lbs., stroke at rated enginer: 10’, speed 38-55 blows/min, bearings 400 tons  Price:  $25,000

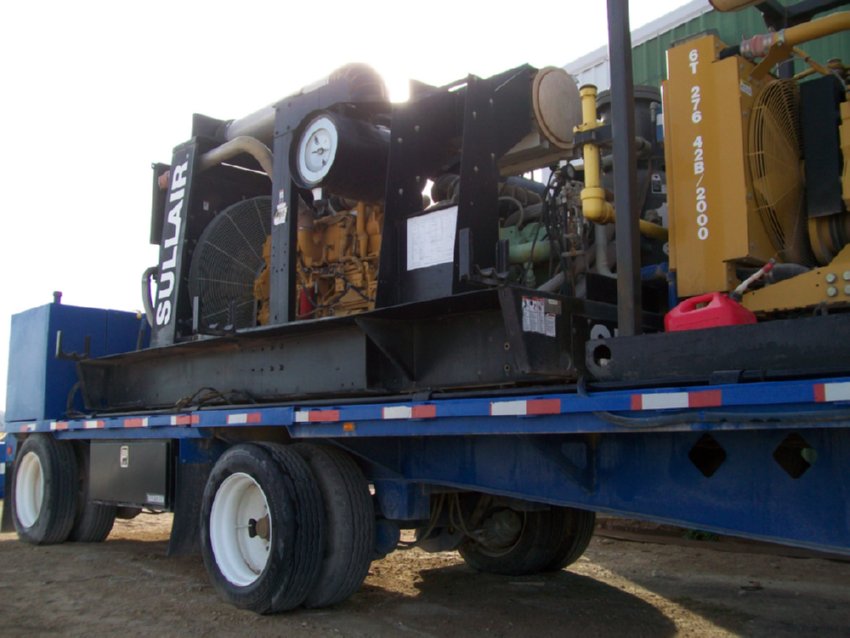

AIR/FOAM UNIT  (Ref#427)


Manufactured 2005, Gardner Denver triplex pump with 97 hours, 1000 gallon fuel tank, Hurricane Booster 2000 psi w/437 hours
Sullair compressor 1150/350 with 450 hours
Mounted on Trailer
Price:  $215,000

A 36 GRADE A ABS STEEL  (Ref#702)
160 pieces, ½” x 4” x 40’ flat bar
775 pieces, ½” x 6” x 20’ flat bar (good spill rail material)
167 pieces 7/8” x 8” x 40’ flat bar (good rub bar for barges/boats)
2 pieces 18” x 4” x 5/8” x 40’ ship channel
83 pieces 9” x 4” x 5/8” x 40’ split MC 18”
19 pieces 5/8” x 5” x 20’ flat bar
All materials primer coated with mill certs
Pricing is 10% below mill price
Call for Pricing

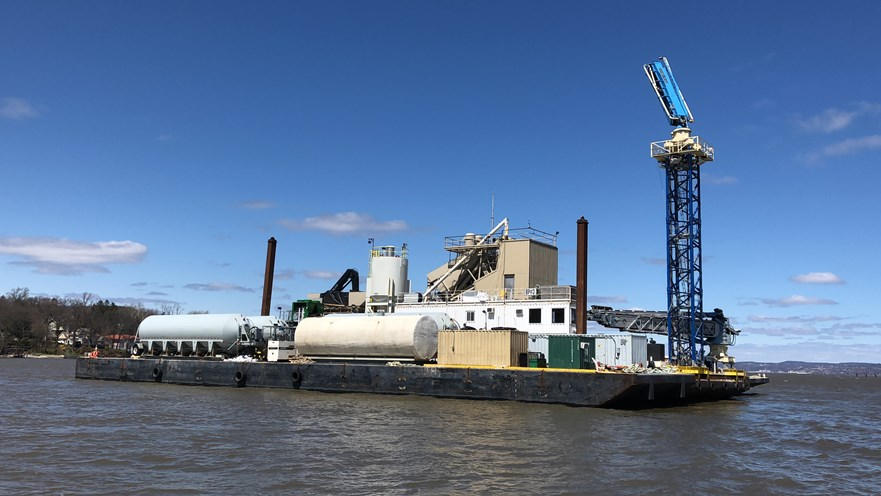

COMPLETE BATCH PLANT (Ref#2)

Mobile Xtec Batch Plant, Aggregate / Sane Hopper - 3 compartment, Horizontal weighing belt conveyor, Inclined feed belt. Aggregate holding hopper
Mixing and weighing module, Cement weighing batcher, Water unit, Air compressor (Chicago Pneumatics), Twin Shaft, BHS Mixer, 52 ton sile - 350 bbl, 82 ton sile - 550 bbl, (3) screw, conveyors, 575kw MagnaMax prime generator T4i, 25,000 gallon water tank with heater, American Geothermal chiller, 18 CY Maxon Remixer, Putzmeister MX 47Z Placing Boom, Hyd Power Unit, 60' tower. BSA 14000 Putzmeister concrete pump. Price: $925,000

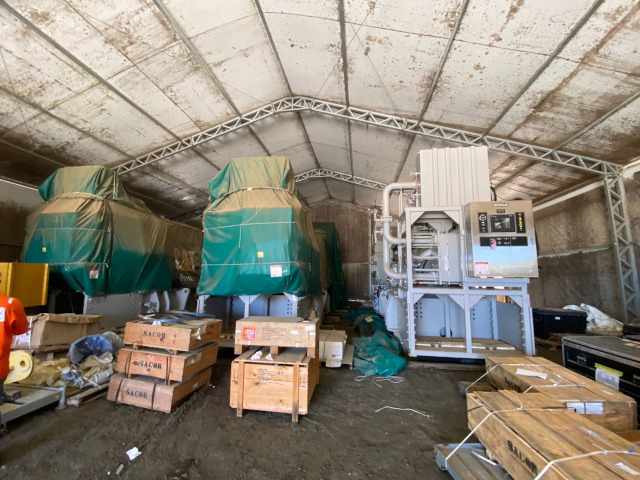

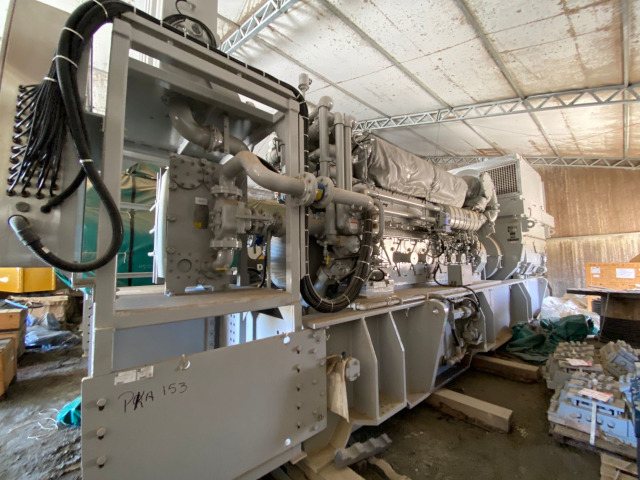

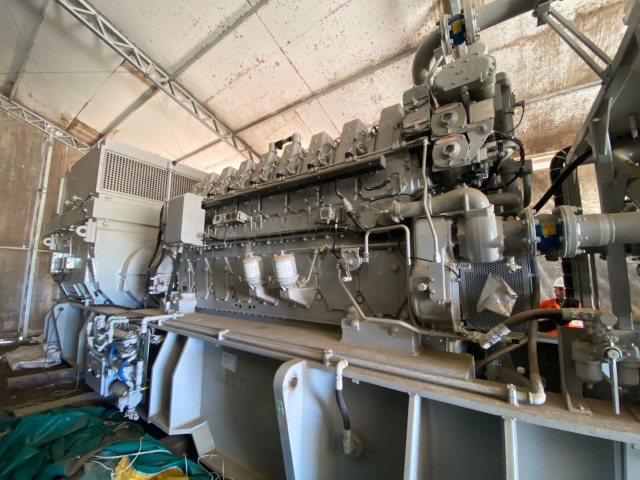

(3) 2011 CATERPILLAR C280-8 OFFSHORE GENSET  (Ref#3957)

Model: C280-8 / I-8, 4-Stroke-Cycle-Diesel, Rated Speed 900 RPM, Generator: KATO ENGINEERING INC Model: AA28661000,  Potency: 3.142,9 Kwa / 2.200 Kw, 60Hz, 346/600 Volts, 3.024 Ah, 3 Phase.  Located South America  Price:  $440,000 each
