VIBRO HAMMERS, PILING EQUIPMENT AND OTHER MISC EQUIPMENT
DIESEL HAMMERS, PILE HAMMERS LEADS
VIBRATORY HAMMERS, CAISSON BEAMS
SOILMEC HYDRAULIC AUGER CLEANER (Ref#775N153) brand new, neverused, suitable for cleaning augers up to 1200mm diameter Price on Request
SOILMEC 412HD CFA KIT (Ref#2841Tb) Price: $50,000
LEFFER 3050MM CASING OSCILLATOR (Ref#5152Rc) New and unused, no powerpack, 10’ (3050mm) diameter, reduction insert for 2500mm diameter, 140,000# overall weight POR
LEFFER CASING DRIVER (ref#12533TJ) 3 available:
(1) 96" diameter casing driver/twister, Never used
(1) 84" diameter casing driver/twister, Never Used , 2 available
Available for Rent
CGJ DRILL MOUNT OSCILLATOR WITH POWERPACK (Ref#12533TF) 1500mm, 60" max casing diameter, 476,000# lifting force, 359,000# crowd force, 472,000# clamp force, 1,400,000# torque, 120 degree casing rotation, 16" stroke. Comes with 4 inserts: 1000mm/42", 880mm/36", 750mm/30" and 620mm/24" Price: $170,000
KALICSON TSAR CO2.0 DRILL MOUNT OSCILLATOR (ref#12533TD) Year 2006, 83"/2100mm opening. 400,000# Lifting force, 350,000# clamping force, 22 degree rotation, 17" stroke, 1,800,000# Torque, Completely refurbished in excellent shape. Comes with 4 sets of inserts: 48"/1200mm, 52"/1300mm, 60"/1500mm, 72"/1800mm Price: $220,000
Crane mount adapter and Hydraulic Power Pack 325 HP available at extra cost
TEI HEM550 DRILL ATTACHMENT (Ref#15236T) Manufactured 2011, remote control Price: $125,000 USD
INTEROC BAS 2200 DRILL, HEAD AND HAMMER ATTACHMENT (Ref#2007Td) Built 2010, Canada Price: $120,000 CDN
HMC 13X VIBRATORY DRIVER/EXTRACTOR (today is known as ICE 216E) (Ref#10037R) Manufactured 2001, very low hours, 30 ton suppressor with 1,100 in/lbs eccentric moment, 40 tons centrifugal force, 3700# weight (without C clamps), drive and extracts H-piles, trench plates, timber piles, guardrail posts etc., for use on excavator 70,000# or higher (Cat 330 and higher) Price: $35,000
APE 64X EXCAVATOR MOUNTED VIBRATORY DRIVER/EXTRACTOR (Ref#11871Rd) Manufactured 2012, 781 in/lbs eccentric moment, 30 tons drive force, 0 – 1650 frequency maximum (VPN), 32 ton max line pull, 4650# weight without clamps, 42.5” height without clamp, 70” length, 13.75” width Price: $55,000
STILLWELL AUGER CAST EQUIPMENT (Ref#12620N)
Double top head drive twin Staffa B200 with a 1:1 drive, approx. 16,000# torque
Hydraulic power unit Detroit 8V71 with 300 gallon hydraulic tank, 100 gallon fuel tank
Remote controls on 4 wheel trailer
65’ box leads, 3 guides for different size augers
50’ of 12” auger – unused
31’ of 14” auger – used one job
51’ of 16” auger – unused
48’ of 18” auger
To be used with 60 ton crane
Price: $80,000
DIESEL HAMMERS / PILE HAMMERS / LEADS
APE D19-42 DIESEL HAMMER (Ref#13210T) Hydraulic trip, recently inspected and refurbished and has not been used since, good condition Price $47,500 CDN
COMMACHIO 300ES CABLE HAMMER (Ref#2567T) complete with 40’ of 11” x 57” bell leads, 36” concrete pilehead and stepped pie head Price: $60,000

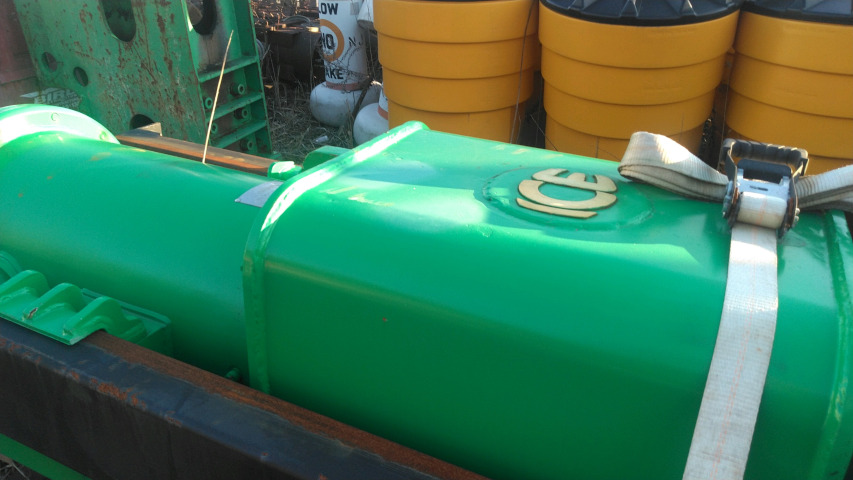

ICE I-30V2 DIESEL PILE HAMMER (Ref#5016Ta)
Built 2016, rebuilt after last use, with 100’ pile leads Price: $115,000
DELMAG D36 DIESEL HAMMER (Ref#7902Tb) Price on Request
DELMAG D16-32 DIESEL HAMMER (Ref#2651Tc) Price: $25,000
DELMAG D200 PILE HAMMER (Ref#1160Tb) Price: $170,000
MKT 9B3 PNEUMATIC HAMMER (Ref#8337Ta)
Includes timber, pipe and H pile heads, and sled for use with a spud, currently set up for use with leads Price on Request

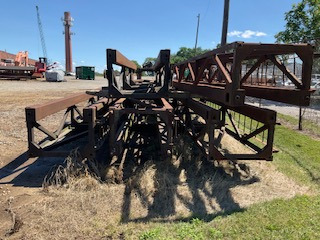

26” PILE DRIVING LEADS (Ref#8337Tc)
Used, various lengths Price on Request

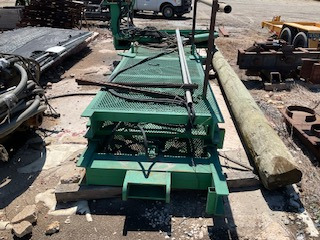

3-STAGE HYDRAULIC SPOTTER FOR PILE DRIVING LEADS (Ref#8337Tb)
Price on Request
BERMINGHAMMER VTL LEADS (14181Ra) 135’ total, including: extended lead sheave, (2) 39’ lead columns, 37’ Bollon lead column, 20’ load column, failead roller assembly, upper vertical travel block, lower vertical travel block, 25’ heavy duty hydraulic Vicker/spotter, upper BTL slide, lower VTL slide, torque resistant swivels (10-15 degrees), Kicker heel extension, lead foot, deflector sheave assembly, 9310 American boom tip connector, Roster sheave assembly and a few other items Price: $260,000

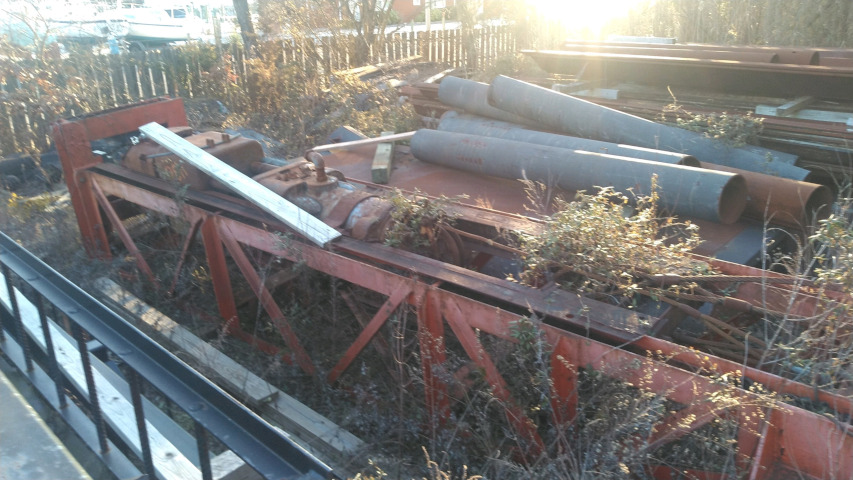

VULCAN 50C PILE HAMMER (Ref#5016Tb)
with offshore leads Price: $60,000

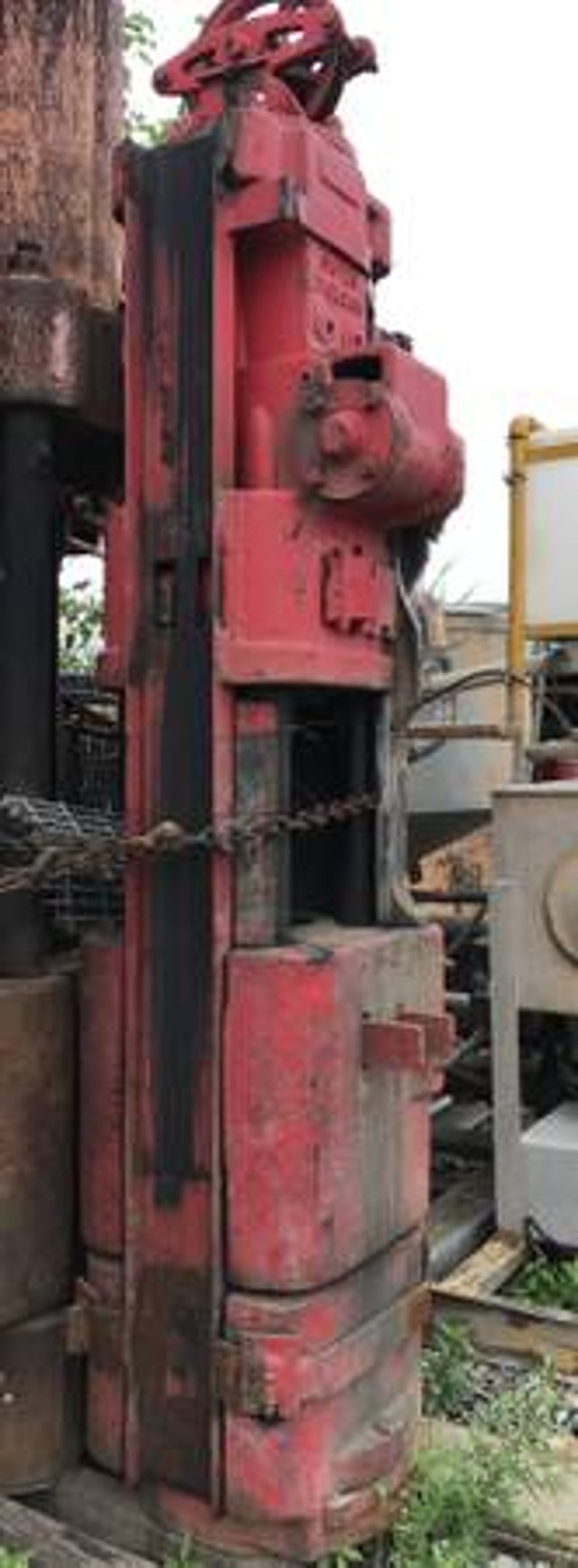

SUPER VULCAN PILE AIR HAMMER #30C KEYED HAMMER (Ref#11656Ta)
Price: $14,750
BOX HANDING SET OF LEADS FOR PILE DRIVING (Ref#11656Tc) 58' length (3 sections top 30', middle 10', bottom 18'), 26" depth, 20-1/2" inside to iside of rail (between the guide), straight leds which bolt together, no ladder, Price: $11,500

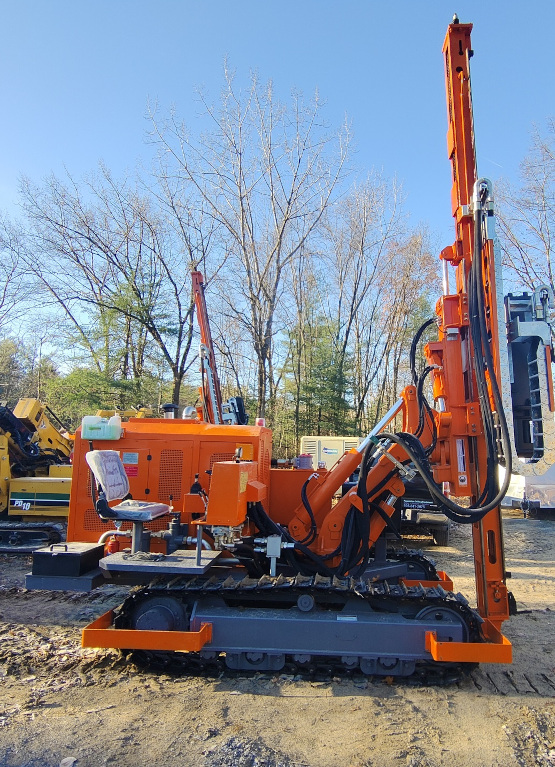

PILE DRIVER WITH HYDRAULIC HAMMER (Ref#2144T)
Cummins QSF2.8T 4F 75-hp engine, manual leveling function, 600-1000 bpm impact frequency, 1200 impact (j), 130-150 bar pressure, 20” spiral drill bore diameter, 12” DTH drill bore diameter, 100-130 psi air pressure, 240” max ramming length, 95 degree skid pitch, 110 degree boom swing angle, 30 degree boom pitch, 40” (left and right total) swinging angle of skid, 35 degree climb ability, weight 16,200 lbs. Also available for rental. Price: $150,000
APE 200 VIBRATORY HAMMER (Ref#1611Tb) POR
APE VIBRATORY HAMMER (Ref#1611Ta)
APE KING KONG 400 VIBRATORY HAMMER (Ref#2651Ta) Year 2007, low hours on hammer and power pack, 15,000 kgm (13,000 in/lb) eccentric moment, suspended weight 42,000#, comes with 1050 power unit with 1050 hp Cat diesel engine, comes with quad beam (2 short beams and 1 long beam) and 4 Model 200 clamps Price: $600,000
BUMA P325 POWER PACK (ref#12533TT) Model BM-P325/648 Price: $55,000
HPSI 100 XL VIBRO HAMMER (Ref#4837T) HPSI Model 100 extractor, 1000 in/lb eccentric moment, 69 tons dynamic force 0.975” amplitude, 2000 VPM frequency, 45 gpm hydraulic flow, 4500 psi hydraulic pressure, 30 tons max line pull, 4900 lb suspended weight, 59” height, 64” width, 10” throat width, 50 ton clamping force, 2” max clamp opening. MKT Model 140 power unit, John Deere Tier III, 40 hp, 3000 psi hydraulic pressure, 120 gal hyd oil capacity, 55 gal fuel capacity, 75” height, 42” width, 106” length, 4900 lbs. Price: $135,000
ICE 416 VIBRO HAMMER (Ref#1160Ta) Price: $95,000
ICE 44B VIBRATORY HAMMER (Ref#12549Tc) Year 2008, with 2008 595hp power pack, ICE 140 sheet clamp, , caisson beam and beam clamps Price: $235,000
ICE 28D VIBRATORY HAMMER (Ref#12549Tb) Manufactured 2017, with ICE 350 Tier 4 Power Pack, ICE 140 sheet clamp Price: $220,000
ICE 28B VIBRATORY HAMMER (Ref#15576R) Manufactured 2006, 5500 psi drive pressure, 4800 psi clamp pressure, 2800 in/lb eccentric moment, 1640 vpm frequency, complete with 350E power unit equipped with C C9 engine (rebuilt by Cat), clamps, remote control pendant and custom fabricated stand, needs new bearings PRICE ON REQUEST
ICE MODEL 6 VIBRO HAMMER (Ref#5016Tc) Price: $50,000
ICE PILE HAMMER WITH POWER (Ref#7924T)
MOVAX / HMC SP100 SIDE GRIP VIBRO HAMMER (Ref#10030TB) Manufactured 2018, very few hours, like new condition Price $165,000
MOVAX / HMC SP60 SIDE GRIP VIBRO HAMMER (Ref#13523T) Price on Request
MOVAX / HMC SP50 SIDE GRIP VIBRO HAMMER (Ref#8532T) Price on Request
TUNKER VIBRO HAMMER (Ref#5710Tm) Power pack, sheet clamp Price on Request
CAISSON BEAMS (Ref#12549Tn)
8’4” ICE single row holes beam
8’3” ICE “T” mounting beam
8’3” ICE “T” mounting beam with (2) ICE 145 caisson clamps with hyd locks
6’ ICE beam (for 14-23 ICE vibro)
5’9” ICE single row hole beam
5’9” ICE single row holes beam
HPSI 10’ caisson “T” mount beam with (2) ICE 105 caisson clamps with hyd locks
Price on Request
HPSI 10’ CAISSON BEAM (Ref#8225T) (2) 125 ton beam clamps Price: $37,500
Available at extra cost:
42” Bauer auger (bit could use some bullet teeth replaced, but the teeth are available)
