COIL TUBING UNITS

  FOR ADDITIONAL INFORMATION CALL OR EMAIL (516) 536 7375 -rigs@sunmachinery.com

2008 NOV HR 660 CTU w/ 2011 PETERBILT 367  (Ref#4433Ta)  2008 Hydra HR660 injector, packoff assembly 90” tubing guide, 12’x71” tubing reel, 1-1/2” tubing, control cab, 2 hose reels, hydraulic hoses, mounted on 2009 4-axle lowboy with air ride suspensions, 2011 Peterbilt 367 with ISX500 Cummins diesel engine, Eaton manual transmission, PTO, generator with 4 cyl engine, 4 accumulator bottles  Price on Request

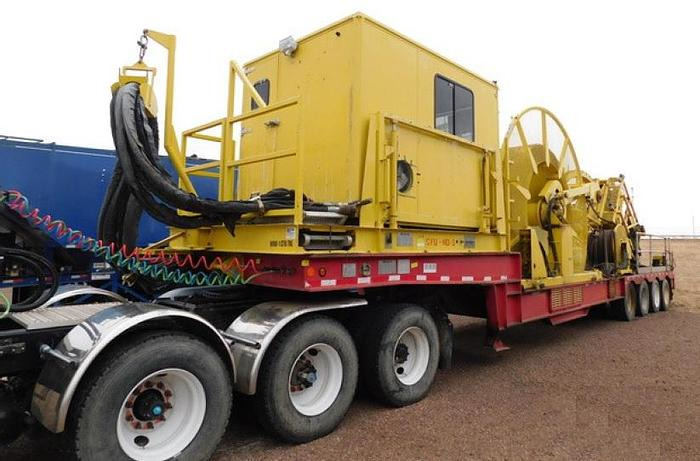

2011 NOV HYDRA RIG 580  (Ref#4435Ta)

NOV Hydra Rig coiled tubing direct drive reel, 76” drum diameter, 70” drum width, 156” outer diameter, with level wind and measuring head dressed for 1-1/4” CT, NOV Hydra Rig 580 injector head, dressed for 2-3/8” with gooseneck, NOV Hydra Rig operator’s cabin 7’ x 10’, mounted on quad axle trailer 102”W x 48’L with landing gear  Price:  $225,000

COIL TUBING UNIT ON KENWORTH TRIPLE AXLE TRAILER WITH SLEEPER CAB (REF#59T)

Built 2007. 5,700 hours. Evenflow Model FCT4500 coil unit. Capacity: 3/4" to 2 7/8" diameter tubing, maximum speed 200' per minute, pull force 80,000lbs. Common usage well service industry. Mounted on Kenworth T800 Tridem 8x4 trailer and tractor with 86" extended sleeper, equipped with 4 hydraulic outriggers. Powered by CAT C15 diesel engine, rated 550 HP. Fabco box to power injector reel and auxiliary circuits. Coil reel 162,000lb capacity, coil is hydraulically powered with level-wind apparatus. Coil diameter: 108" with outside diameter 137", 10,000 PSI working pressure, No BOP or stripper. Dimensions and weight: 43'L x 105,000lbs. Used lightly and intermittently. Located Texas. price: $180,000

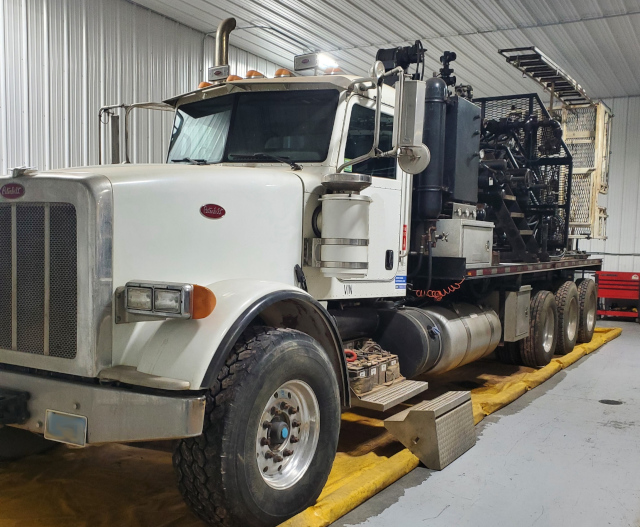

NU-ENERGY SNUBBING UNIT  (Ref#5879Ta)

Built 2013, 170k, 12’ stroke 4” x 6” legs, 4 slip unit (both snubbers are Langley 225k slip bowls and both heavies are Cavin C HD slips), 7-1/16” x 5k annular, (2) single gate 7-1/16 x 5k Cameron type U BOP’s, (1) spool with equalize rotex and bleed off rotex for stripping ram to ram, (1) Oil country 55000 tubing tong, mounted on 2013 Peterbilt with Cummins ISX15 power pack, 3 axle car trailer with c-can modified into a tool room, last certified 2016  Price:  $270,000

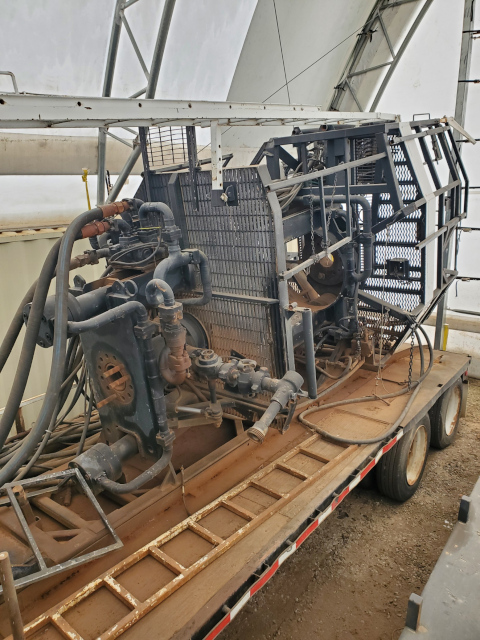

SNUBCO SNUBBING UNIT  (Ref#5879Tb)

Built 2008, 150k, 12’ stroke 3-1/2” x 5-1/2” legs, mounted on 2007 X double-axle trailer with c-can housing Cat C11 power pack, and modified into a tool trailer, 4 slip unit, equalize and bleed off spool with rotex valves  Price:  $170,000

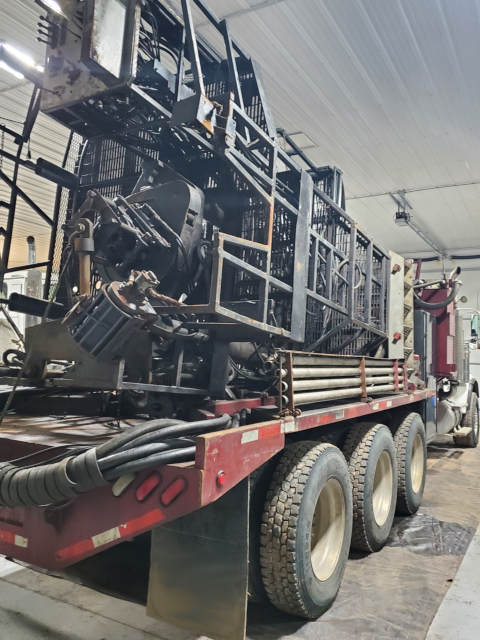

SNUB PRO SNUBBING UNIT  (Ref#5879Tc)

Built 2007, mounted on 2007 Freightliner with Cat C15, 170k, 10’ stroke with 4” x 6” legs, 4 slip unit (2 sets of snub pro single 80 ton slips and 1 set tandem 80 ton slips), 7-1/16 x 5k annular, (1) double gate Shaffer LXT, 7-1/16” x 5k pancake style hanger flange, (2) 18” 7-1/16” x 5k rotating spools, (1) 18” 7-1/16” x 5k spool, equalize and bleed off spool with rotex valves, Oil Country 55000 tubing tong, 2013 PF trailer with c-can modified into tool room, Certification expires October 2022.  Price:  $270,000

240k SNUBBING UNIT  (Ref#5833T)

Rigless snubbing unit, 4 cylinder hydraulic power jack, travel heavy slip, stationary heavy slip, hydraulic power rotary, upper basket, gin pole, tong arm, 240,000 lb max lifting force, 141,000 lb max snubbing force, 192” stroke length, 1 slips sets 1” – 5-1/2” 250,000 lb max load, 9000 ft/lb power rotary 70 rpm, 12’ x 3’8”H work basket, 2-section telescoping gin pole (44’ extended height from slip to sheave) 8000 lb max load, 6800 lb wireline winch capacity, (2) counter balance winches (500 lb max load), tong arm installed on lower section of gin pole.  Skid mounted power pack w/Detroit 8V92 diesel engine, Dennison 3000 psi hydraulic pump, Funk 3-drive gear box, 385 gal hydraulic reservoir  Make Offer

MCCOY KT 5-1/2 CASING TONGS  (Ref#5879Te)

Run great  Price:  $60,000
