11/19/2024
MUD ROTARY RIGS 2000' AND DEEPER

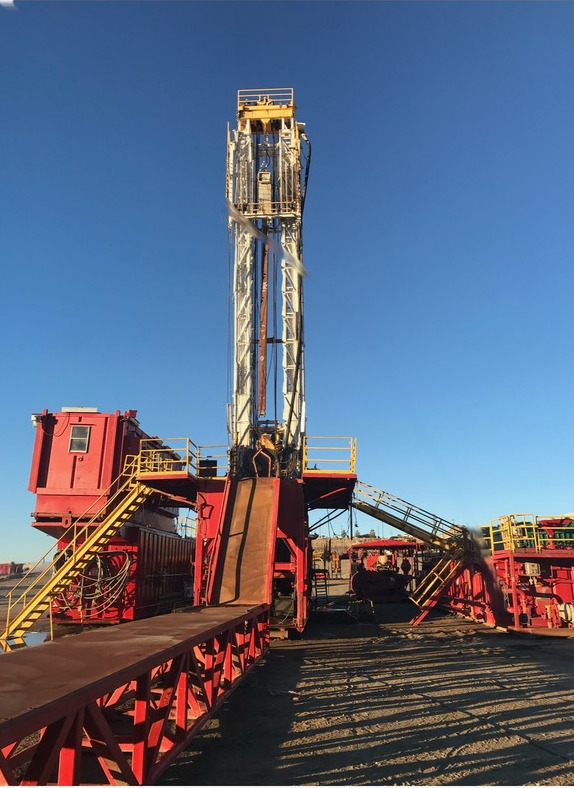

LOADCRAFT HRI 700 MOBILE 1000 HP DRILLING RIG (Ref#3830T)

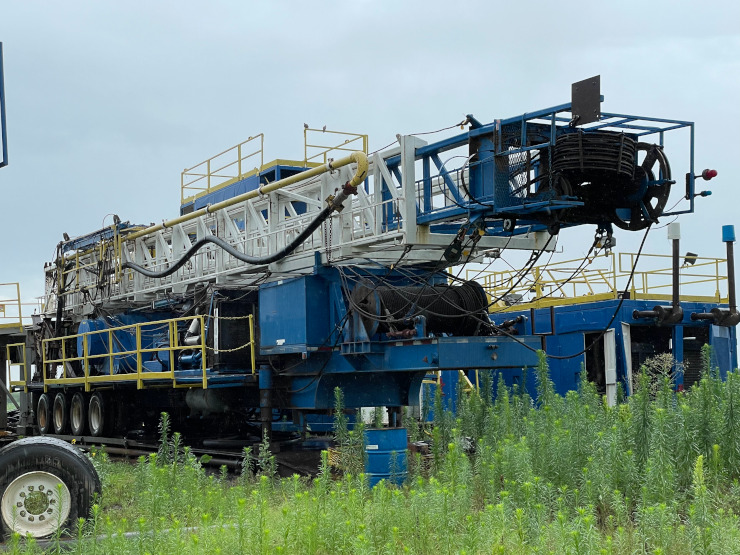

SERVICE KING 1000 DRILL RIG (Ref#3975T)

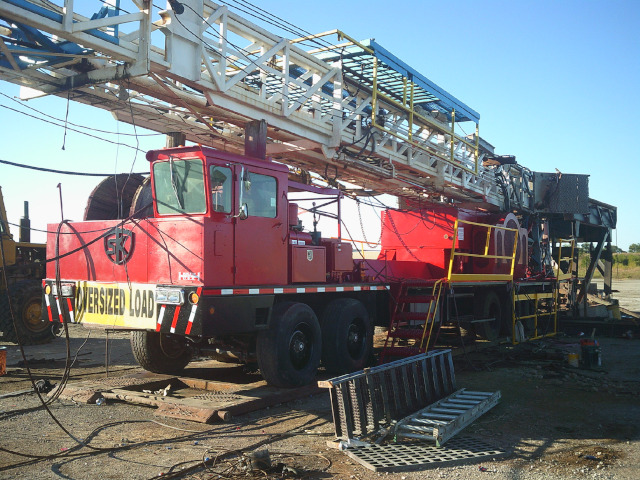

SERVICE KING 675 DRILLING RIG (Ref#6830T)
Manufactured 2008, 104’ x 315,000# derrick, single drum with 8 lines 1-1/8” wire, dual 6’ hydro breakout, Ideco 7-1/4 x 15” duplex mud pump with 353 Cat engine, 150 ton swivel, 4-1/2” x 40’ kelly, (8) 6-1/4” collars (new), 5000’ of 4-1/2” 1660 X-hole drill pipe Double White, (2) 300 bbl mud pits, 150 bbl water tank, doghouse, 12’ substructure with 18” rotary table, center tub with v-door, (2) pipe tubs, 42” x 30’ pipe rack, (2) landing mats for rig and sub, (2) 6’ elevator links, 4-1/2” 150 ton elevators, (2) sets of slips, rat hole digger with boot, (2) Type B BJ tongs Price: $390,000

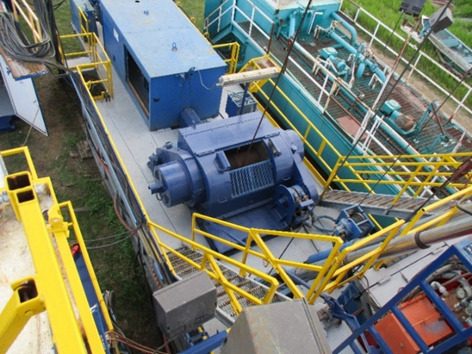

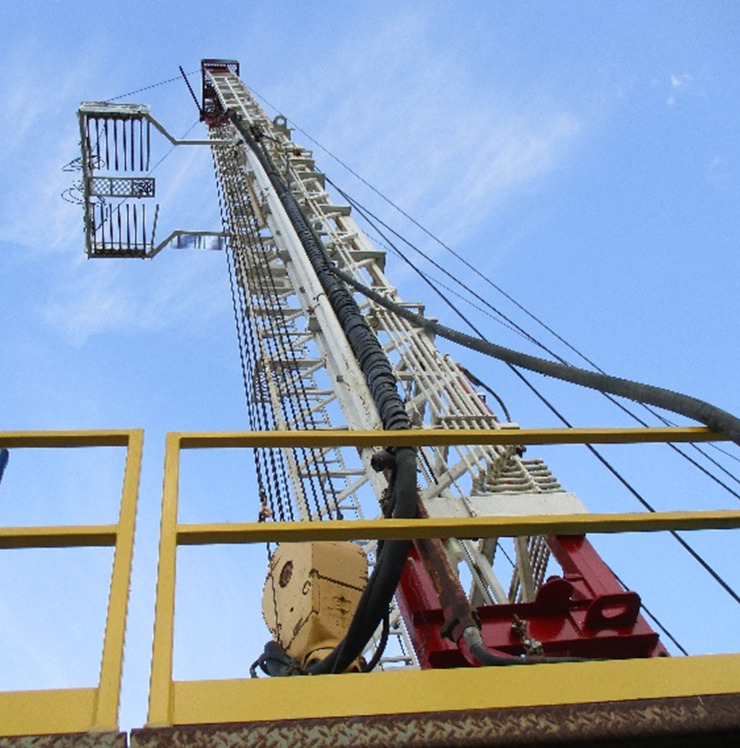

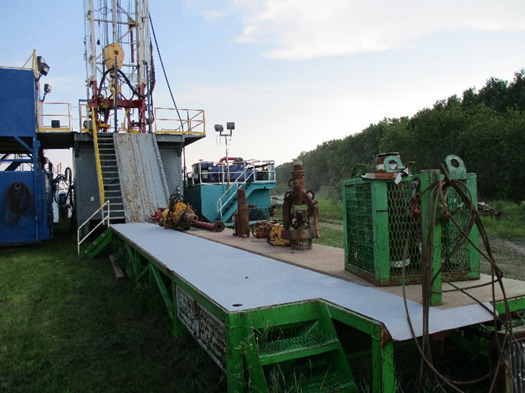

UNIFLEX DRILLING RIG PACKAGE (Ref#4478T)
102’ x 250,000# Uniflex telescoping derrick, substructure, catwalk, V-door, 60 Series Detroit engine, upper doghouse/water tank combo, combination shack with tool room/change room and (2) 100kva genset, mud tank with shaker, OPI 700 Series triplex pump Package Price: $395,000

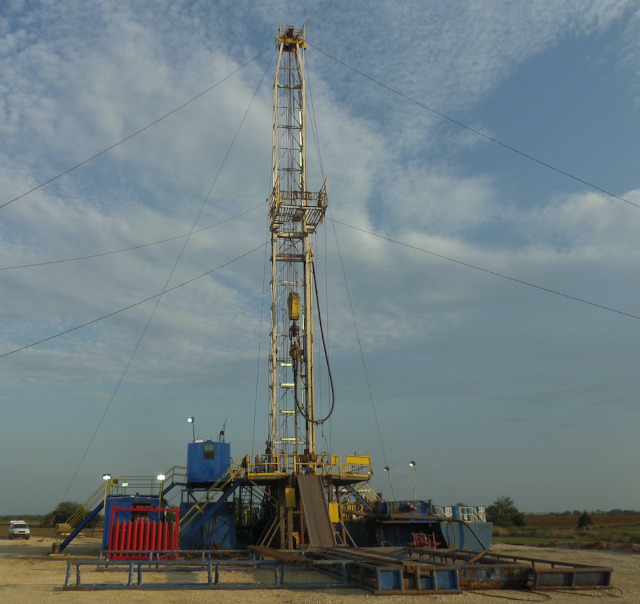

CARDWELL KB750 DRILL RIG (Ref#3982T)
Rated 8,500’ with 4-1/2” drill pipe, (1) Detroit 60 engine 14L 650hp, Cardwell 112’ x 300,000# mast, Century 17-1/2” x 44” rotary tble, Ideco 160 ton Block, King 150 ton swivel, Regan 10” 3000 psi annular BOP, triplex pump, Detroit 60 Series 350 kw generator, 400 bbl mud system, ready to work Price: $425,000

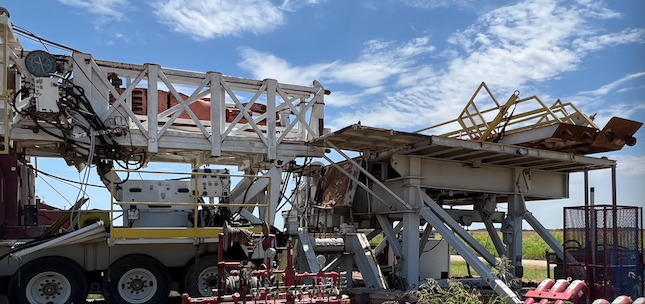

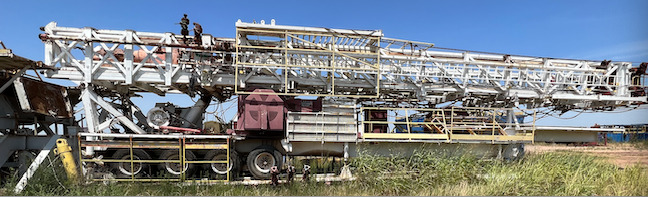

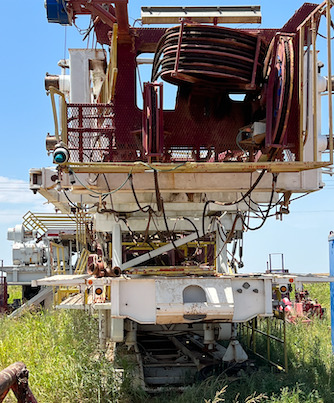

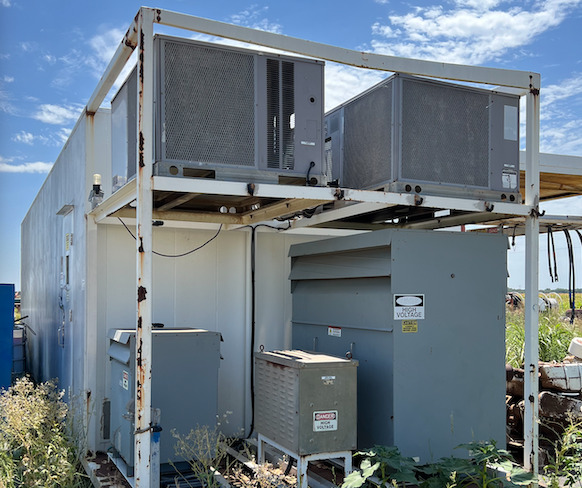

CROWN CE900SED SCR DRILL RIG (Ref#3976T)
Crown Phoenix CE900SED single drum drawworks Lebus grooved f/1-1/4” drill line, p/b (1) 1000 hp traction motor with gblower p/b 10 hp electric motor, Eaton Fuller 238 aux brake, CJZ250 deadline anchor, opertor’s control penl, 2 hyd hoists, drill line spool with hyd motor, mounted on 2009 Stewart Stevenson 4 axle trailer, 124’ x 500,000# SHL 4-leg Stewart Stevenson 4-leg telescoping mast, 6 sheave crown block, racking board, 4” standpipe, 3” rotary hose, 500,000# weight indicator, utility winch, 1-1/4” drill line and spool, McKissick 250 ton 5 sheave block/hook combo, 18’H self-elevating substructure w/rotary beams, folding walkers, stairs, rails. Skid mounted 1000 hp tractor, blower p/b 10 hp electric motor, 20-1/2” Hackard Pyramid rotary table in rig floor, 10’W x 12”H x 54’L steel back on ramp. Omron 4 x 3 SCR House, (4) GE SCR panels, (3) GE generator panels, Allen-Bradley Centerline 2100 panels, (4) 20 amp battery chargers, deep cell batteries, (2) SOLA MCR transformers, Square D breaker panel, HPS 3-phase 600 volt transformer, (2) carrier Gemini split A/C systems w/air ducting and venters, external electrical panel w/doors, mounted iin 36’L x 10’6”W x 10’H flat steel house w/8’L porch extension, skidded, (2) assorted electrical transformers Price: $325,000
CROWN CC 750 DRILLING RIG (Ref#3983Ta)
118’ x 350,000# telescoping crown derrick, 15H telescoping substructure, 17-1/2” x 44 ZP 175 rotary, Ideco UTB 160 ton block/hook combo, (2) Detroit Series 60’s 14L engines 620 hp @ 1800 rpm
Price bare rig: $985,000
Price complete rig without top drive: $1,250,000
Price complete rig with top drive: $1,450,000

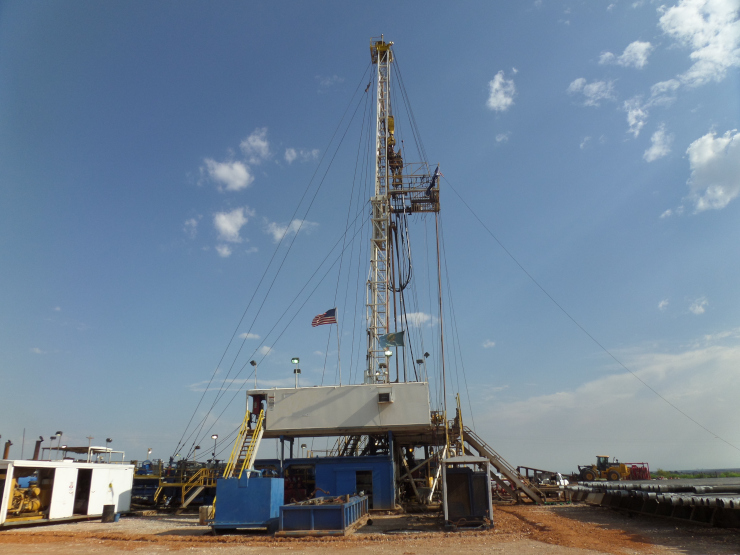

CROWN CC 750 DRILLING RIG (Ref#3983Tb)
118’ x 350,000# telescoping crown derrick, 15H telescoping substructure, 17-1/2” x 44 ZP 175 rotary, Ideco UTB 160 ton block/hook combo, (2) Detroit Series 60’s 14L engines 620 hp @ 1800 rpm
Price bare rig: $985,000
Price complete rig without top drive: $1,250,000
Price complete rig with top drive: $1,450,000

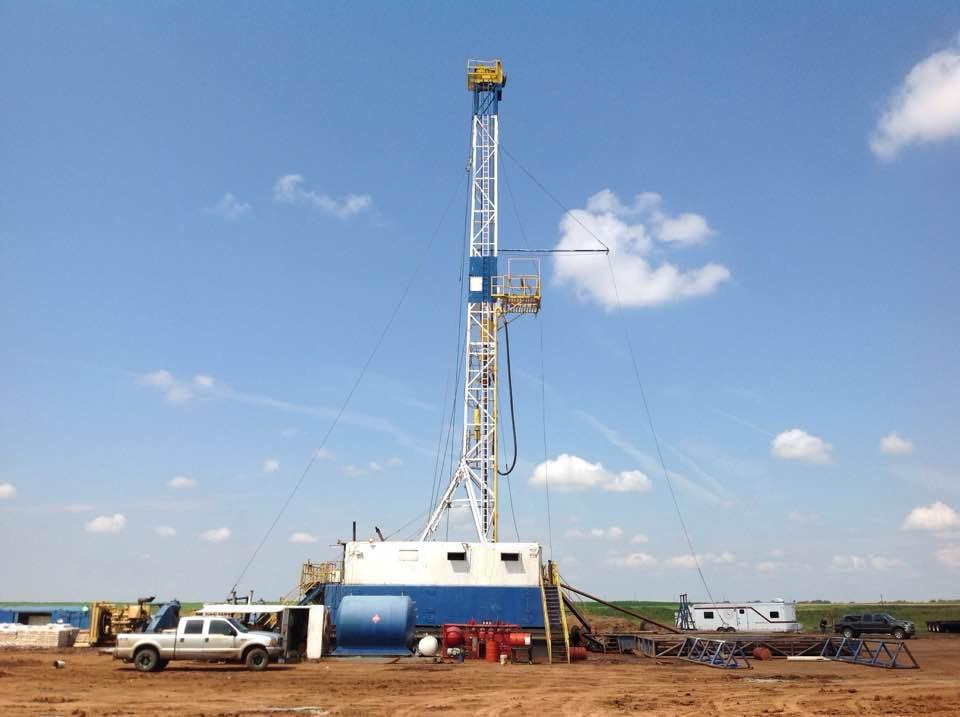

U-15 DRILLING RIG PACKAGE (Ref#9491T)
U-15 single drum 800 hp drawworks, Hydromatic, double jackknife, (2) Cat 3406 engines with twin torque converters with Quad Parmac hyd, air compressor, mounted on skid, ramps, catwalk, 107’ x 300,000# Butler & Parks cantilever derrick, (derrick can unpin to make shorter for transport), 8’H x 40’ x 14’W Butler & Parks substructure with 3’ pony subs, (splits for transport), 24” x 44” Oilwell rotary table, 250 ton Emsco swivel, Bear with hook weight indicator, doghouse/roughneck house with 300 bbl water tank skid mounted, Wilson 600 mud pump with Cat 379 engine skidded, Wilson 600 mud pump with Cat 353 engine skidded, mud mixing house w/tank on 20’ skid, 4 pipe boxes w/53 jts each, 13 drill collars, pipe racks, Dorland 3000# Bladder BOP Schaffer double ram 3000# psi and 3-station closing unit, utility skid w/parts house w/ 120kw Cat generator and 100 kw Cat generator. Stacked since 2020 PACKAGE PRICE: $110,000

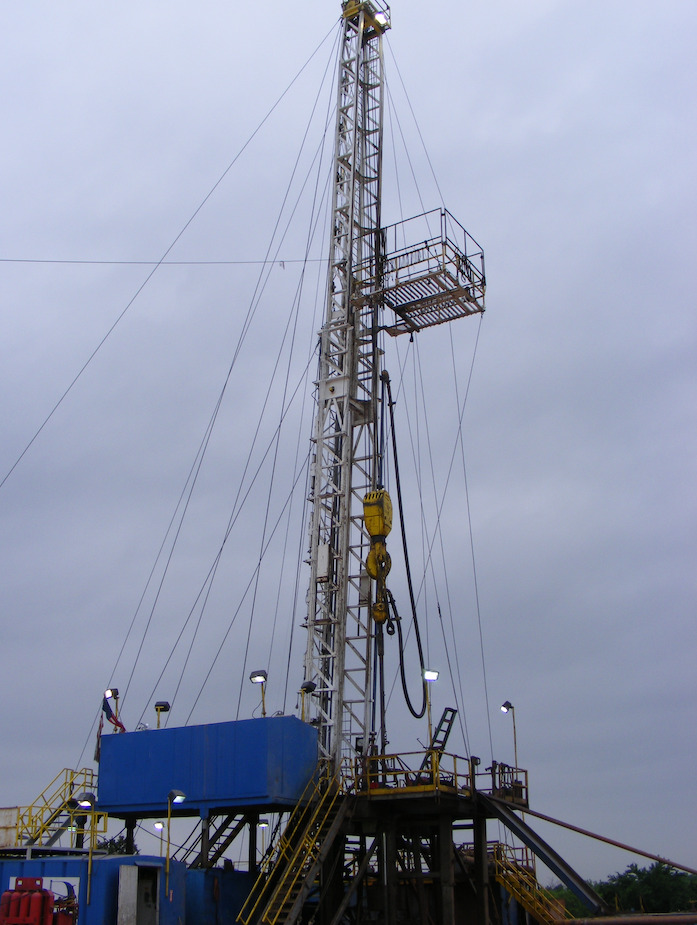

IDECO H44 DRILL RIG (Ref#3977T)
1000 hp trailer mounted drill rig, (2) Detroit 60 Series engines 475 hp each @ 1800 rpm, 117’ x 450,000# derrick, 17’ adjustable substructure, Century 17-1/2” x 44” rotary tble, National 160 ton Shorty block, V door catwalk, water tank/doghouse combo Price: $275,000

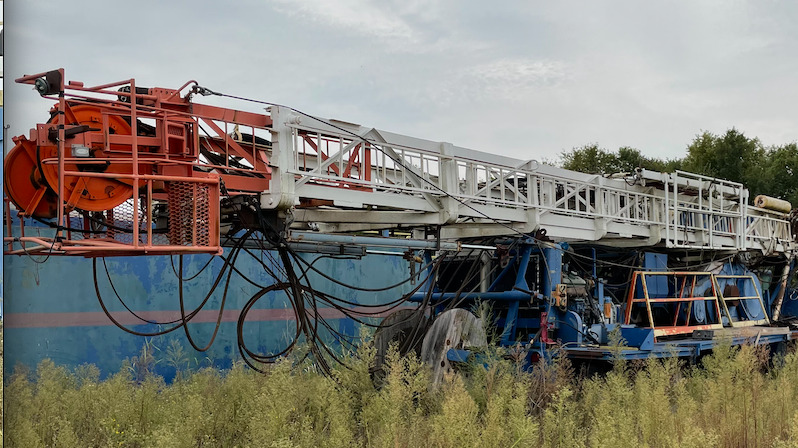

IDECO H44 DRILL RIG (Ref#3981T)
Drive in, rated to 6500’ with 4-1/2” drill pipe, (2) Detroit 871 engines (305 hp each), Ideco 108’ x 268,000# mast, 12’ H telescoping substructure, Dreco 150 ton block, ZP 17-1/2” x 44” rotary table, V-door catwalk, water tank/doghouse combo Price: $215,000

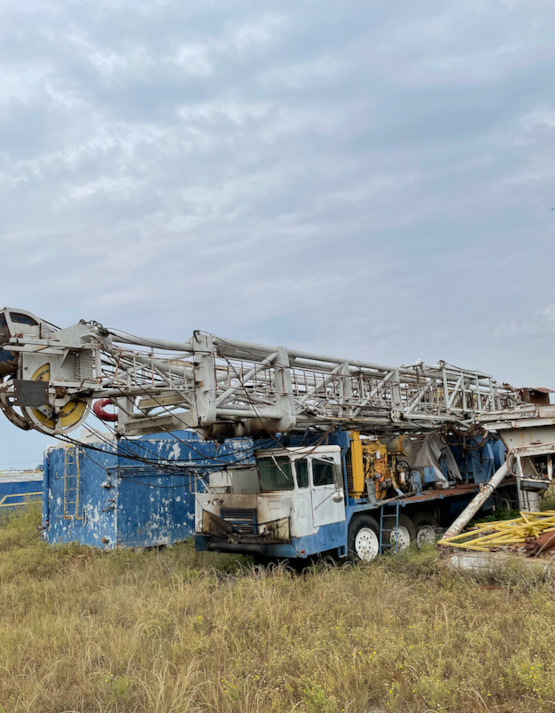

FRANKS 2042 DRILLING RIG (Ref#3977Tb)
Rated to 8000’ with 4-1/2” DP, (2) Cat 3406 engines 425hp ea #1800 rpm, 112’ x 300,000# derrick, 17’ adjustable substructure, 17-1/2” x 44” rotary, water tank/doghouse combo, Vdoor, catwalk Price: $325,000

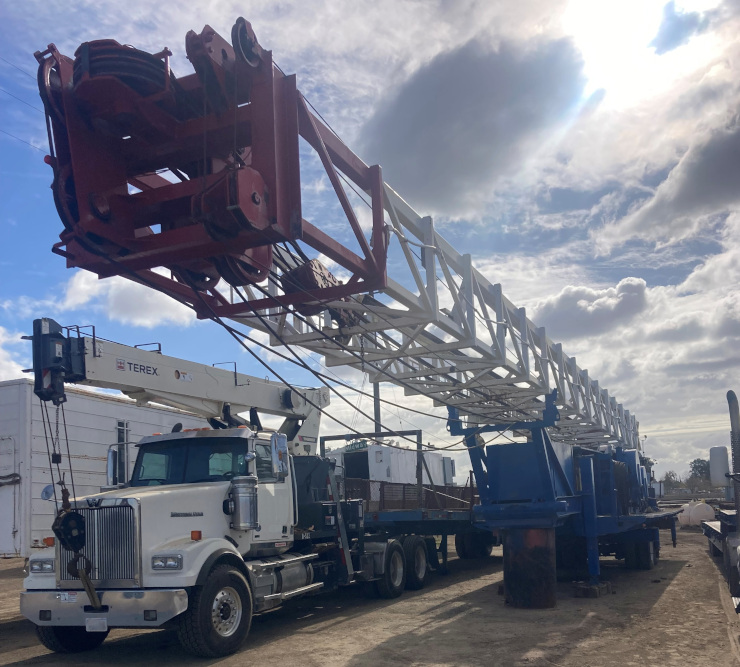

MIDWAY 2500 REVERSE CIRCULATION DRILL RIG (Ref#8825T)
Trailer mounted, double drum drawworks, Cat engine, 65’ x 190,000# derrick, (2) 27” rotary tables, no compressor, no mud pump Price: $435,000

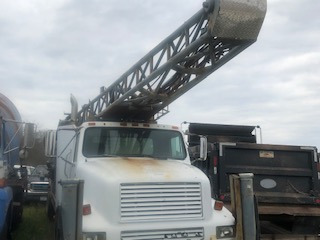

FAILING DMX DRILLING RIG (Ref#9278T)
Mounted on 1988 International Navistar 8300 6x4 truck, Gardner Denver FXX 172 mud pump with 8” stroke fully operational Price: $75,000

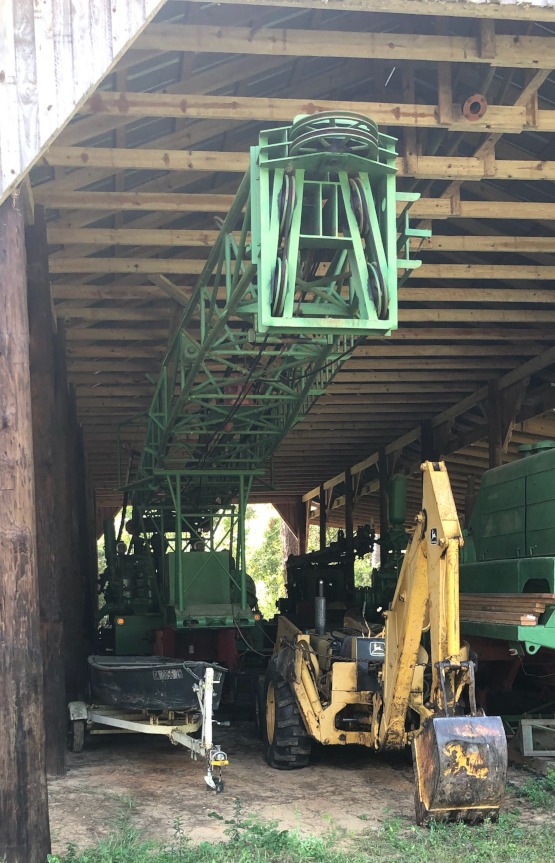

FAILING 2000 DRILL RIG (Ref#7544Ta)

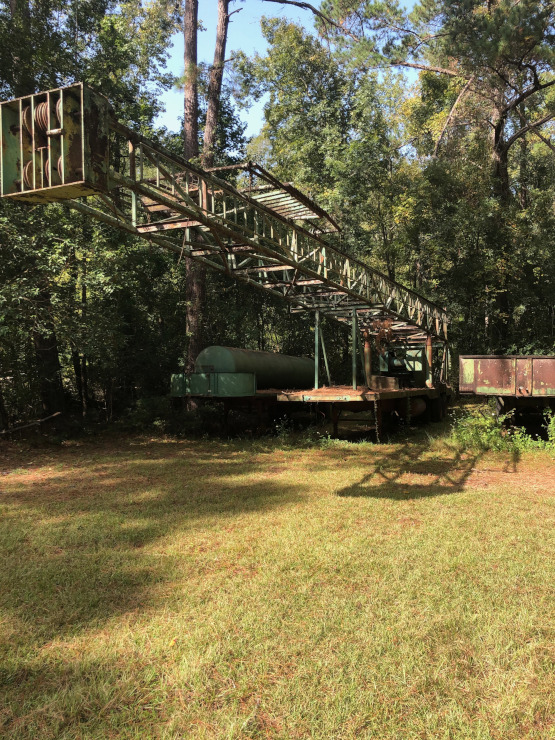

EWBANKS DRILLING RIG (Ref#7577Ta)
Triple drum drawworks, 70’ derrick, mounted on trailer, no mud, no engine, no kelly , no table, no bushing, sitting over 10 years Price: $65,000

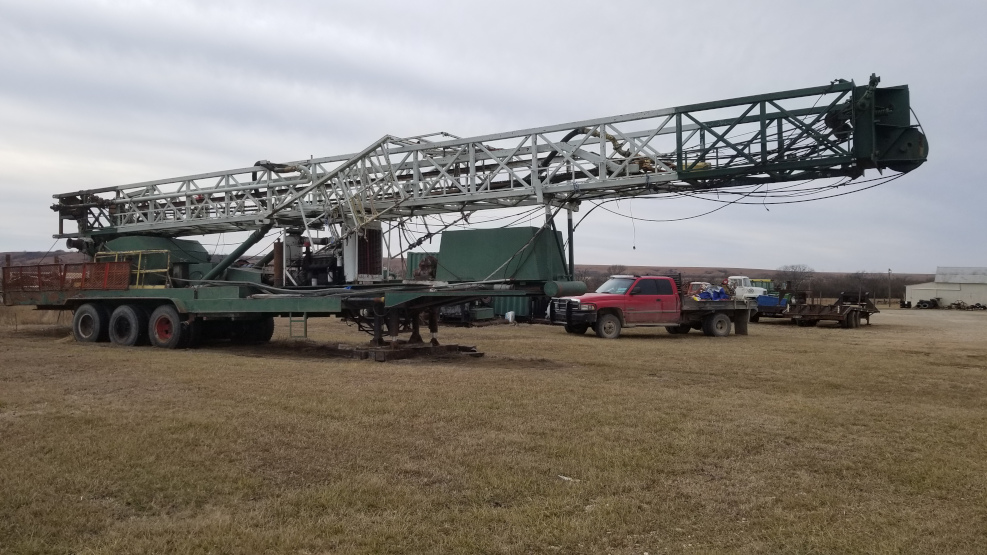

DRILLER’S FRIEND DRILL RIG PACKAGE (Ref#1103T)
GES QUICKSILVER 1600 HP DRILLING RIG (Ref#

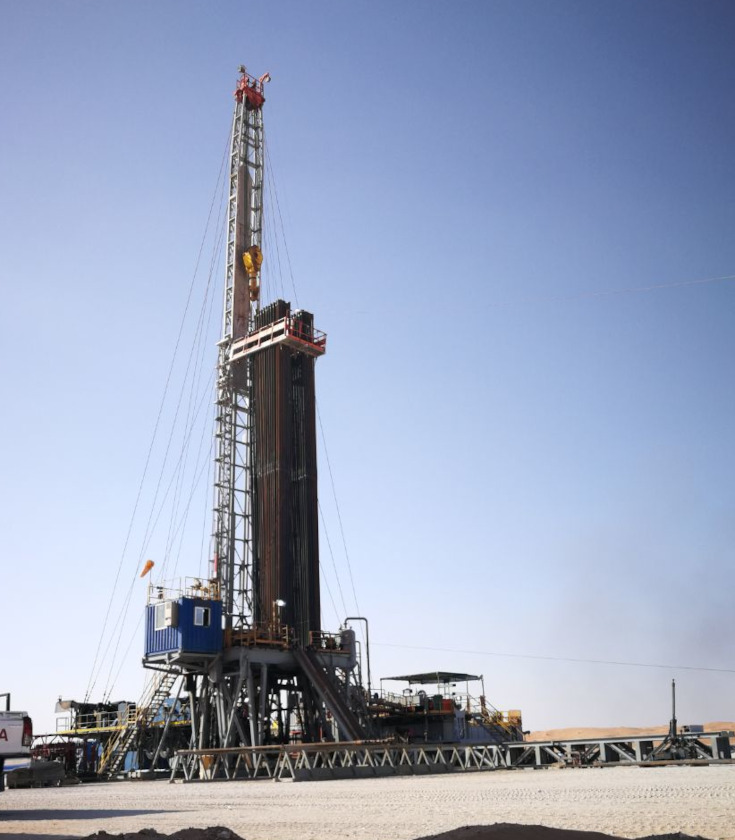

DRILLMEC MODEL MR8000 DRILLING RIG – 1000 HP (Ref#2939T)
Manufactured 2011, Semitrailer mounted, mechanical driven, 104’ x 440,000# derrick with 10 lines, 1000 hp Drillmec drawworks 1-1/8”, kelly rotary system, (2) Cat C15 engines power drawworks, (2) Drillmec 9-T1000 mud pumps p/b Cat 3512 engines, (3) Cat C15 engines for AC user of drilling equipment, mud tanks and system 13-5/8” x 5000 psi BOP equipment (annular and double ram), 2000m of 5” drill pipe and 2000m of 4” drill pipe, 100 man camp site Price: $6 Million

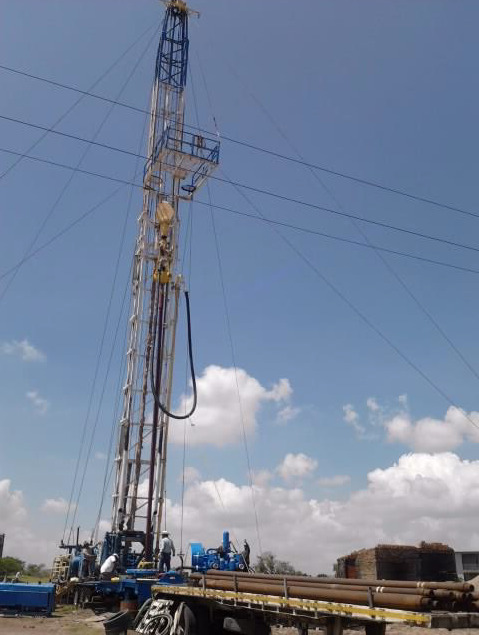

WILSON SUPER 42 DRILLING RIG (Ref#2131T)
Single drum drawworks, mounted on 3 axle trailer, 6V71 Detroit diesel engine, 96’ hydraulically raised mast, Gardner Denver FQ-FXQ 5-1/2 x 16" mud pump with air clutch powered by Detroit 6V71 diesel engine, mud mixer, 11’ x 8’ x 16’ sub, 17-1/2" Brewster rotary table, 4-1/4" x 40’ square kelly and kelly bushing, 21’ kelly hose pipe, 7/8" cable right hand lay 985’, handling tools, tongs, elevators, slips, elevator links, BOP, (3) 6" x 30’ drill collars, (45 jts) 4-1/2" XH 16.60# Grade E drill pipe, 2 Wilson tongs, 125 ton Skytop block and hook, 100 ton swivel Package Price: $315,000 Price, rig only: $220,000

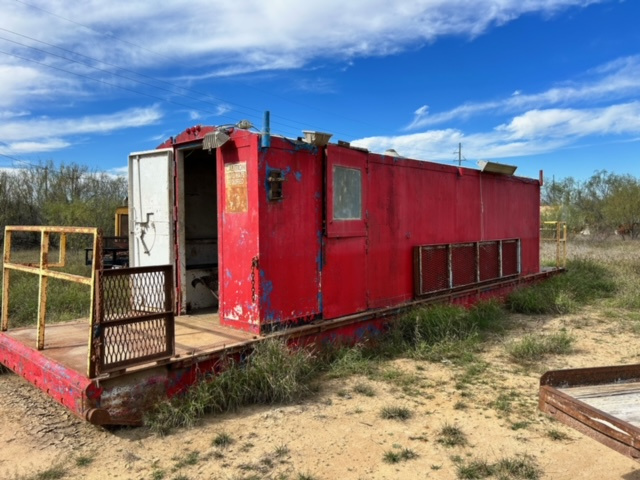

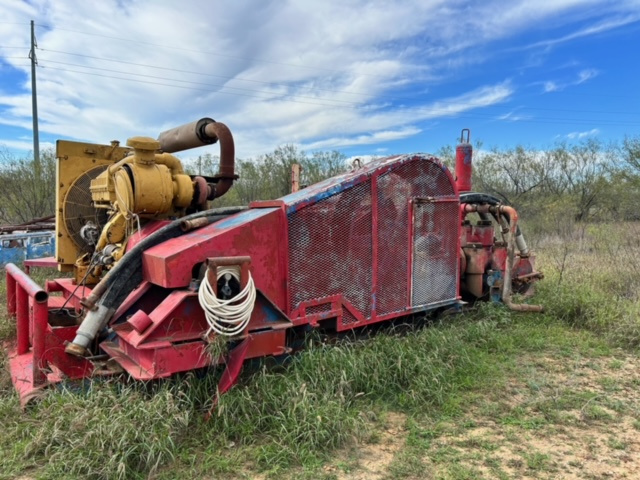

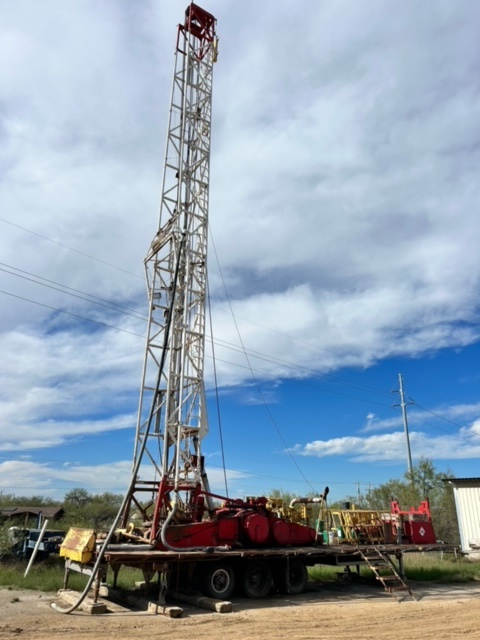

SHOP BUILT 6000’ DRILLING RIG (Ref#2918Ta)
Trailer mounted, Cat 550 hp engine, 17-1/2” Oilwell rotary table, 7 x 14” mud pump with Cat engine, 4-1/2” kelly, 2000’ drill pipe, 8 drill collars Price: $155,000

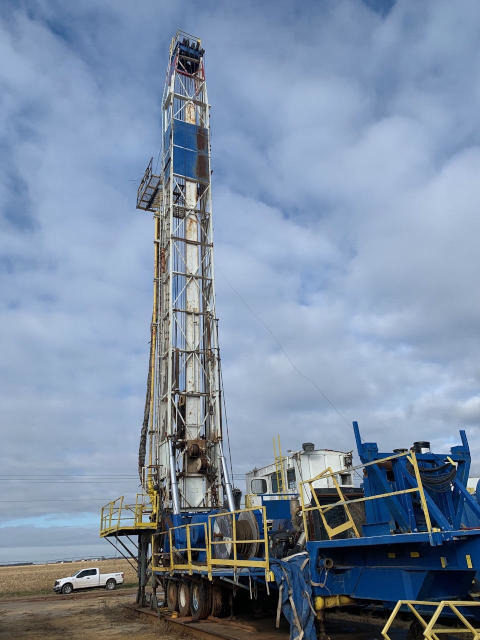

CHALLENGER 360 DRILL RIG (Ref#836T)
Challenger 360 drawworks (500 HP) (rated to 6,500' with 4 1/2" drill pipe), (1) Series 60 12.7 liter 500 HP, Challenger 200 - 84' H - 300,000# SHL derrick,, 10' adjustable substructure, HT - 18" x 44" rotary table, Not used since 2018. Price: $250,000 Price with Venturetech top drive: $315,000
GARDNER DENVER 3000 DRILL RIG (Ref#3385T)
High Back, mounted 3 axle trailer, Cat 3406B, 5 speed Allison, single drum with sandline, 8 line block and hook, 1 drill line spool on front of rig, 122 Parmac brake, air controls, stand pipe, 4th valve kelly hose, GD 125 tons swivel, Foster cathead, weight indicator, 4 hyd jacks, 8 screw jacks, 95’ x 200,000# hydraulically raised and scoped derrick, 10” BOP, tongs, mud boat
Gardner Denver FXN pump with Cat 3408B, quick change caps, air clutch
Center walk tub with V-door, pipe storage under walk
(2) Tubs (9) 6-1/4 drill collars, approx 3800’ of 4-1/2 drill pipe XH, 4-1/4 kelly with roller bushing
Doghouse on trailer, hyd raised, drilling recorder, Bear auto driller, Five Star hyd wireline, sureshot, air compressor, washdown pump, lockers, storage bins, vice, slips, elevators
Fuel tank. Water tank trailer mounted
Gen house 114kw, air compressor, storage, spare parts skid
80 bbl premix tank, Deutz with pump, hopper, toolbox, skid
Price: $375,000

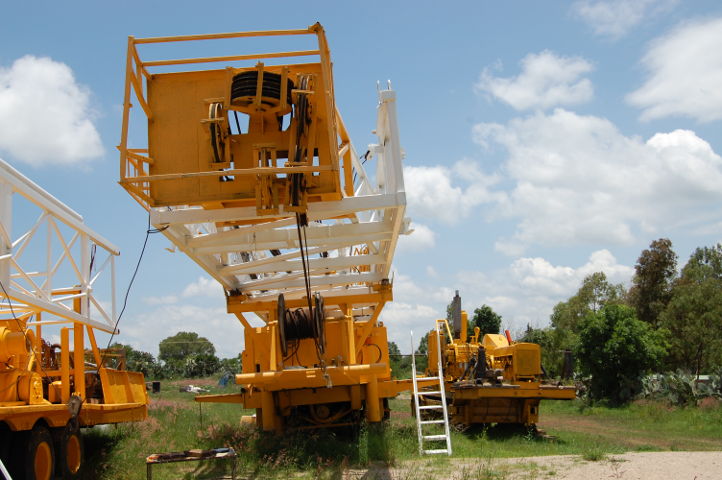

GARDNER DENVER 3000 (Ref#15370Ra)
Manufactured 1982, 7-1/4 x 14” mud pump, 100 ton block, 17-1/4” rotary table, 2 engines (Cat and Detroit diesel), single drum, mounted on 3-axle trailer, located Mexico PRICE: $245,000

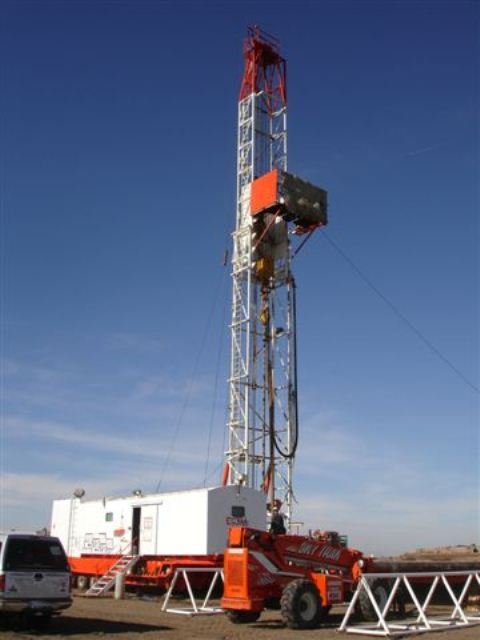

GARDNER DENVER 3000 DOUBLE DRUM (Ref#6059R)
Manufactured 1977, 95’ x 200,000# hookload capacity mast, vertical freestanding hydraulically rasied and scoped w/stabbing board, double drum drawwork, 121 Hydramatic brake, 1” drill line, p/b (2) 671 Detroit engines (175 hp) each thru compound case, Low back substructure 8’ x 8’ x 4’ clerance under table platform, mud boat, Howard Turner 18” rotary table, King 75WP swivel, 4-1/2” x 40’ square kelly with roller type bushing, (1) Mud King 110 ton with (4) sheave traveling block, elevator links. BJ Type LF-BF Model CTS power casing tongs w/ 2-3/8”, 2-7/8” and 4-1/2” jaws, 225 bbl mud tank w/ 5 x 6 x 11 Mission Magnum mix pump, Derrick FLC 503 Flo Line shaker (no cones) p/b John Deere diesel engine, 80 bbl mud system w/ 5 x 6 x 11 mix pump p/b 471 NA Detroit diesel premix, 8’W x 7’H x 10’L covered porch. (1) Kohler Model 100REOZLC 88kw capacity p/b John Deere diesel engine, 200 bbl water tank, 1300 gal fuel tank, doghouse and change house, all mounted on 42’ tandem axle trailer. Gardner Denver FXN 7 x 14” mud pump with 5-1/2” liners, quick change valve caps, powered by 3406C Cat (425 hp), skidded with metal roof, tarp sides. (23) 4-1/2” drill string, slick collar HD90 box and pin, 200 jts 6,000’ 4” full hole. In early 2015 rig drilled 40 holes to depth of 4,500’. Price: $345,000
GARDNER DENVER 3000 (Ref#13951T)
Drill rig reconditioned 2008, single drum drawworks, 63’ derrick (custom built square tubing), 7/8” line rated at 250,000 lbs., 46’ travel from table to crown blocks, King Oil 3PS-14 (85 ton) top drive, 6000 lb winch, rotary table, mounted on Pierce Portland 4 axle carrier, hydraulic power unit powered by John Deere 8.1 liter Tier III engine 300 hp, (2) 25 gallon hydraulic tanks. Includes drill rig, doghouse and spare engine. Last drilled 2016 Price: $195,000

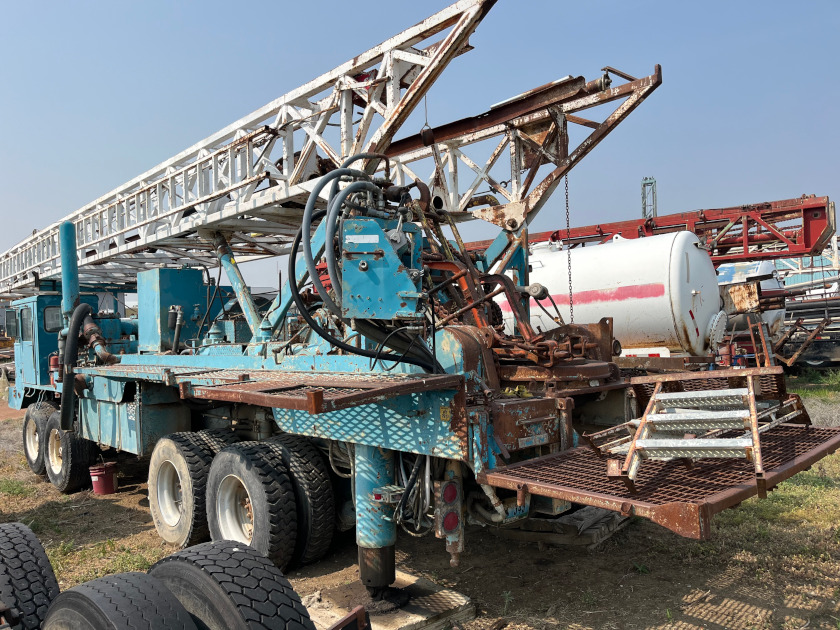

GARDNER DENVER 2000 (Modified, 2800' capacity) (Ref#10286Tb)
Manufactured 1980, 3 drum Heavy Duty drawworks (freshly overhauled), hydro brake, set up with elevators and compression slips, hydraulic pulldown, 54' HD square derrick, 6 line blocks 5/8" cable, 4-1/2" x 37' square kelly, roller kelly bushing, mounted on Western Star Tandem axle truck, 4 leveling jacks, on deck Gardner Denver FXX 7-1/2" x 8" mud pump chain drive gear end (freshly overhauled), 18" Gardner Denver rotary table, full set of tongs, weight indicator, side catwalks, spinning chain PRICE: $280,000
MAYHEW SD54 DRILL RIG (Ref#4416Ta)
CARDWELL KB200 DRILL RIG (Ref#13685Td) Double drum, air clutches, 75’ mast, 28" table, Detroit diesel engine, centrifugal mud pump on deck, comes with 7-1/4 x 14 National duplex mud pump with 500 hp Cummins engine mounted on low boy trailer, 1200’ of 5-1/2" Reg x 30’ pipe on 40’ Hobbs trailer Price: $190,000

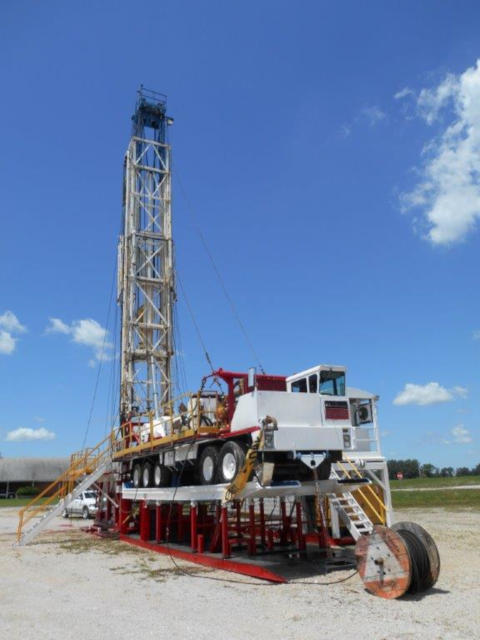

NATIONAL DRECO 550 RIG 8000' TO 9000' DRILL RIG (Ref#2691T)
Drawworks mounted on 5 axle Crane Carrier, rated 8000-9000’ with 4-1/2" drill pipe, 550 hp Cat 3406 engine, 103’ telescoping mast, Ellis Williams 14" duplex mud pump with all new parts and fluid end including liners, heads, valves and setas and pony rods p/b 475 hp Cat engine, 5000’ of 4-1/2" drill pipe, subbase with rotary table, rig ramp, top and bottom crew houses, 40 kw generator Magnaplus powered by 4 dcyl Perkins engine, 300 bbl water tank, center walk tub, 3 pipe tubs, 12 drill collars, elevators, slips, rotary tongs PRICE REDUCED: $475,000

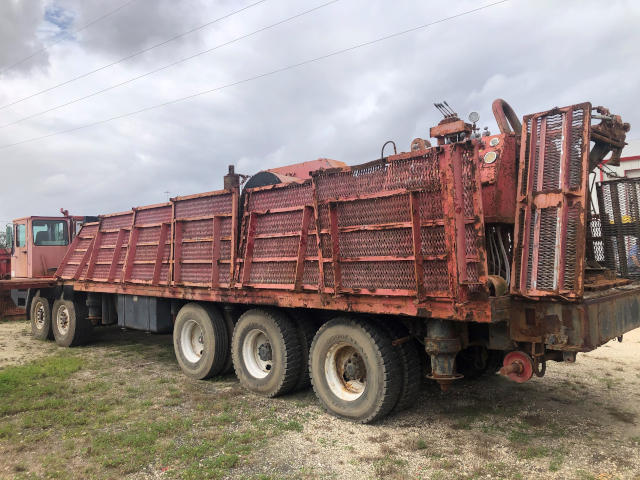

JIMCO 550 DRILL RIG (SIMILAR TO COOPER 550) (Ref#555Tg)
Mounted on 2006 Kimble 5 axle carrier, Detroit Series 60 diesel engine, Allison CBLT transmission, 51’H x 385,000# SHL super Single Mast, Spencer Harris crown assembly, 15PS King 150 ton power swivel, rotary hose, air mud fuel lines, Foster catheads, mounted on 2006 Kimble 5 axle carrier, drop box, folding walkways, safety rails. Mast currently off – being reworked. Located Texas Price: $675,000
GARDNER DENVER 2000 (Ref#4906R)
Manufactured early 1980's, triple drum with sandline, rebuilt drawworks, recent rebuild on engine, trailer mounted with twin Detroit 471 turbo engines, 56' mast, 100,000# pullback, 7 x 10 GD mud pump, 35' x 4-1/2" square Kelly, 18" Howard Turner rotary table, cathead, no pulldown, air clutches, spinning chain, racking board, 4 hydraulic leveling jacks SALE PENDING

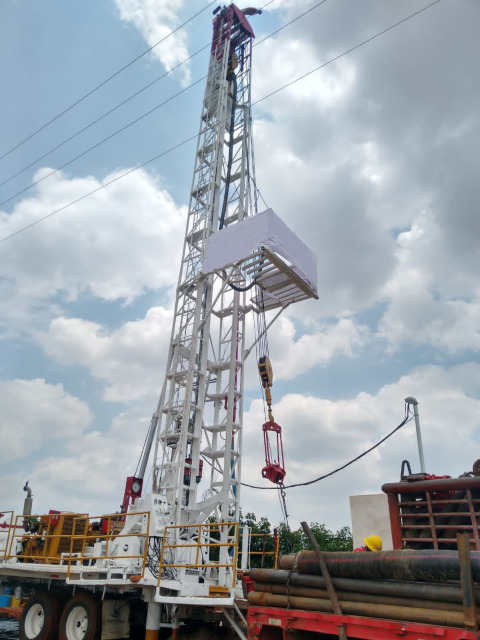

GARDNER DENVER 2000 (Ref#8733N)
Manufactured in 1980 , Gardner Denver FY-FXD 7-1/2 x 10" mud pump, 18" Gardner Denver RT-18 rotary table, double drum drawworks 45,000# capacity with 6 lines, sand reel , 4 Hydraulic leveling jacks, 58' x 66,000# capacity mast,2 Caterpillar engine, SW 75 Ton Gardner Denver Swivel, 2 Traveling blocks, 40' Kelly, kelly bushing, air clutches, Parmac Hydromatic brake, 2 brake tongs with hydraulic jack, trailer mounted on a 2 axle located Mexico Price: $225,000

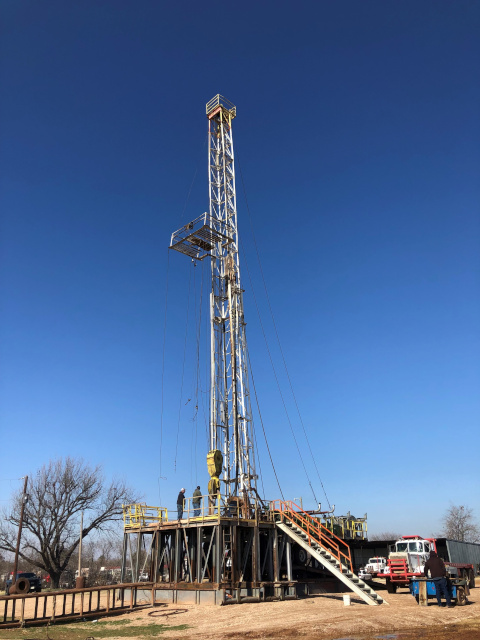

SPENCER HARRIS 7000 DRILLING RIG (Ref#7176T)
MIDWAY 2500 DRILL RIG (Ref#6722T)
Gardner Denver 5-1/2 x 6 mud pump, 350x600 LeRoi air compressor with spare compressor for parts, 44M drawworks with spare 34M drawworks, injection pump for air drilling, Midway retractable rotary table, extended derrick with racking b oard to stand back drill pipe, both kelly block and hoist block are 4 line 19 x 7-5/8 non rotating with 2 spare spools (one 255’ for kelly and 275’ for hoist block), mounted on 1999 Kenworth tandem axle truck with Cat 3406E Cat engine, PTO
1969 Kenworth pipe truck with inline 6-cylinder Cummins rebuild, 2000’ of 2-7/8 bottle neck drill pipe (2-3/8 IF box and pin), 15 and 20 core barrel with a new 20’ inner barrel
1995 Kenworth water truck, 3200 gallon tank
20’ Utility trailer with ramp and side door
Package Price: $350,000

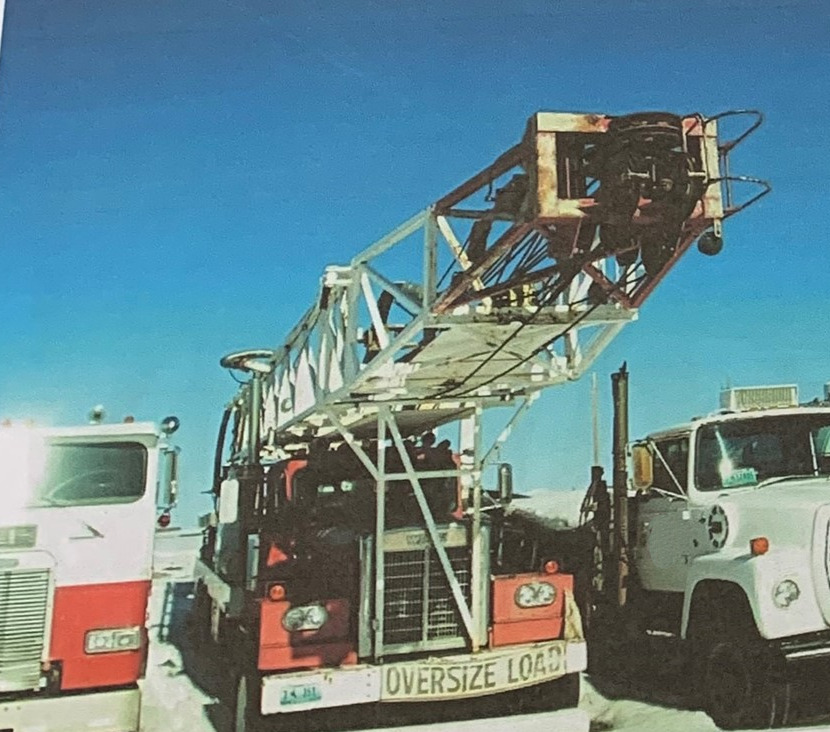

MIDWAY 2250 (Ref#10286Ta)
Manufactured 1975, 3 drum drawworks – water cooled, 6 line traveling blocks 5/8" cable, hydraulic pull down, weight indicator, hydraulic spin chain and hydraulic spinners, 50' square tube derrick, 3-1/2" x 34-1/2' square kelly, 7-1/2" rotary table, Gardner Denver FXD 5-1/2" x 10" mud pump, mounted on Western Star truck, 4 leveling jacks Price: $260,000

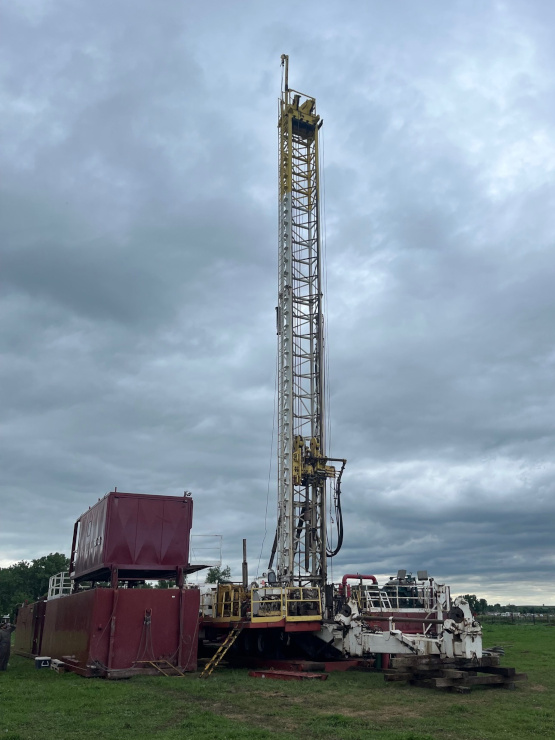

WALKER-NEER 250-40 DRILL RIG (Ref#1744T)
Refurbished 2000, (2) Cat C15 diesel engines (one powers rig, one powers HPU), pipe handling arm, currently reworking tophead Price: $170,000
WALKER NEER 46 RIG – CONVERTED TO ROTARY (Ref#9859T) Trailer mounted, 2 sets of blocks, 350 Cummins engine, power swivel, 2 front and 2 rear hydraulic leveling jacks.
(2) IR 900/350 air compressors
(2) mud pumps
500’ drill collars
3000’ drill pipe
Package Price: $395,000
WILSON MOGUL 38 DRILLING RIG (Ref#8645RA) Manufactured 1980, trailer mounted with 60 series Detroit engine, mounted on sub frame, truck is included, 75 ton block, 68' telescoping mast, 18" stationary rotary table, 46' x 4 ½" Kelly, air clutches, no pulldown, breakout tongs, 4 hydraulic leveling jacks, no pipe available Price $70,000

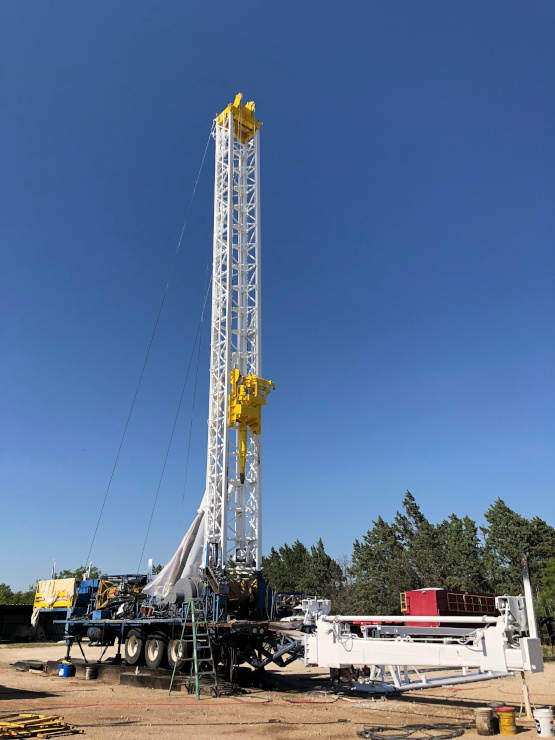

1100HP (14000') CUSTOM BUILT TOP HEAD PULLDOWN DOUBLE MAST RIG (Ref#10105R)
480,000# holdback, 80,000# pulldown, remote monitoring capabilities via internet, 12 trailer load (does not require crane to rig up or rig down)
4 man crew, self-reporting diagnositcs
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
Custom built in 2011, late model, 4G certified, built for purpose, small footprint, rapid mobilization- from arrival of first load at location to commencement of drilling is less than two days.
Trailer Mounted.
Can drill up to 12,000’ using 5" drill pipe and up to 14,000’ using 3-1/2" drill pipe
1100 HP Rig Power: (2) 515hp Cat C15 engines
480,000# holdback capacity
80,000# pulldown capacity
35,000 ft/lb top drive rotary torque
65' x 40' drill footprint
Mast: 480,000# mast, 98' H x 8' W x 7' D
Substructure: 16' high hydraulic leveling, self-supporting (no guide wires) mechanical outriggers
13' height under rotary beams, matting boards, accessories
(2) winches 17K; 6K
Laydown line
Topdrive Carriage:
480,000# holdback capacity
80,000# pulldown capacity
35,000 ft/lb top drive rotary torque
4" kelly line
Hydraulic bail extension/retraction
Mounted backup clamp and guide bell
Work platform for maintenance
Computer controlled lighting system
Control System:
Full computer based control system
Capability of accurately controlling bit weight, ROP, rotary speed, rotary torque, auxiliary functions
Fault Management
Touch screen interface
Remote monitoring capabilities via internet
Self-reporting diagnostics
Automatic mitigation of fault conditions with minimal loss of functionality
Full WITS Communication
Mud System:
(1) 600 kw generator sets
Pits (like new):
(1) 62' x 11'6" x 7 - 500 bbl mud shaker tank with (3) partitions
(2) 5" x 6" centrifugal pumps p/b 75 hp electric motors
(1) 55' x 11'6" x 7 - 300 bbl mud suction tank with (3) partitions
(2) 5" x 6" centrifugal pumps p/b 75 hp electric motors
800 bbl mud system
Bop Stack:
Double ram: 13 5/8"
Annular: 13 5/8"
Accumulator: Koomey type 80 6-station, 210 gallon accumulator
Rotating Head: Washington 1500 psi
Choke Manifold 5,000 psi 4-1/16" x 2" and (2) 2-1/16" adjustable chokes
Gas Separator: 10" flanged flow line, 4" flare line
Accessories/Pipe Handling Equipment:
7,000# jib crane, winch boom, rotate
17,000# main winch
Racking board (racks 11,880' of 4-1/2" doubles, folds for transport
Quick Change Hydraulic Power Slips
Adjustable Height Tong Pulling System with Torque Limiting
Power Tongs: Varco SSW30 and 13-3/4" D & D Power tongs
Catwalk: 42' x 8' x 42" with walkway
4 kw rig lighting system
PRICE REDUCED: $1,499,000 Or Best Offer

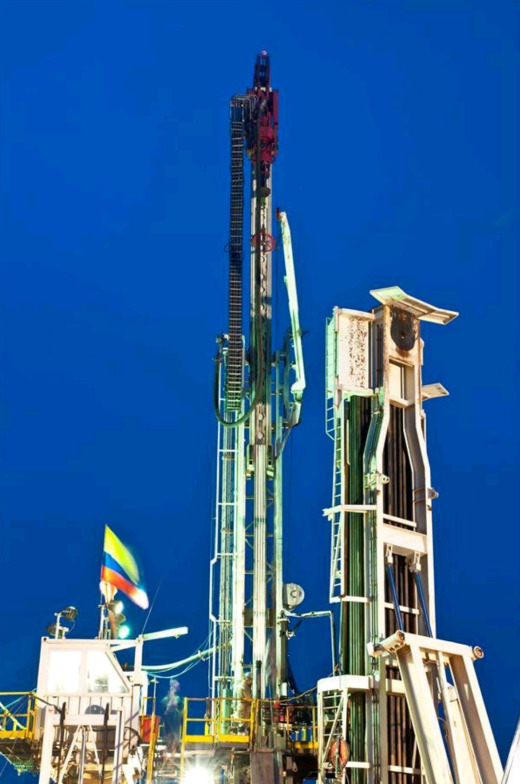

DRILLMEC HH102 650hp DRILLING RIG (Ref#11279Ta)
Built 2010, Cat 3412C DITA diesel engine, 52’ x 220,000# derrick, 4 sheave crown, 550 hp top drive, 20-1/2” rotary table, 16’H substructure with 24” clearance between mast to well center, (2) Drillmec 7TS600 7 x 8 triplex mud pumps 600 hp p/b Cat C18 diesel engine, mud system, diesel tank, water tank, 11” x 5000 psi Hydrill double BOP, Shaffer 5000 psi GK annular BOP, accumular closing unit, generators, hydraulic torque wrench, power tongs, instrumentation, hydraulic pipe handling, 6500’ of 4” S135 drill pipe Price: $4,375,000

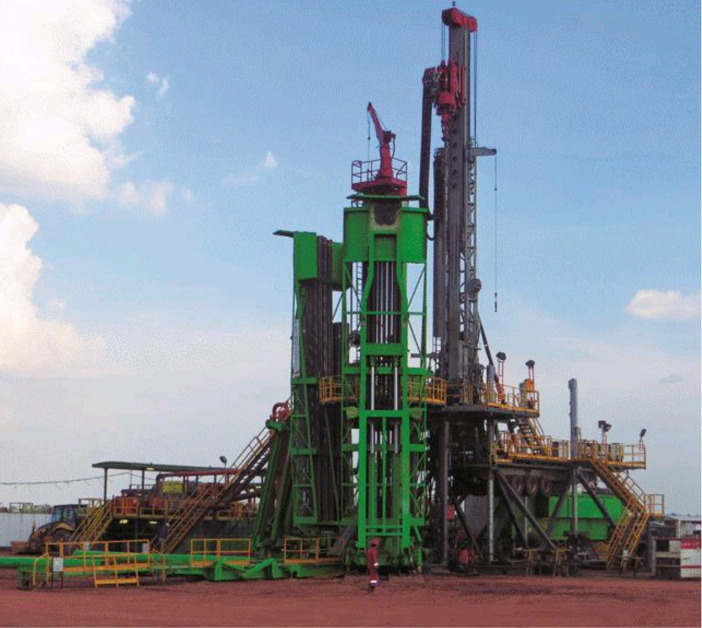

DRILLMEC HH220 1000hp DRILLING RIG (Ref#11279Tb)
Built 2013, Cat C18 ACERT DIT-ATAAC diesel engine, 52’ x 400,000# derrick, 8 sheave corwn block, 1000 hp top drive, 27-1/2” rotary table, 25’ H substructure with 23’ clearance clear height under rotary beams, (2) Drillmec 9T-1000 9 x 8 mud pumps p/b Cat 3512 engines, mud system, diesel tank, water tank, 11” x 5000 psi Hydrill double BOP, 5000 psi Shaffer GK Annular BOP, accumulator closing unit, generators, power tongs, hydraulic torque wrench, instrumentation, hydraulic pipe handling, 14000’ of 4” S135 drill pipe Price: $7,500,000
GARDNER DENVER 2000 (Ref#7109T) Manufactured 1978, 5-1/2 x 10 Gardner Denver mud pump, cathead, chain pulldown, 56' mast, 10" table, mounted on 4 axle Crane Carrier, Cummins 400 engine, available Fall 2023 Price: $215,000
CABOT 550 TRAILER MOUNTED DRILL RIG PACKAGE (Ref#11850T)
Cabot Franks Explorer drawworks, Detroit 60 Series diesel engne, 3 axle trailer, 6 speed Allison 5860 transmission, 96' x 250,000# Cabot mast, 4 sheave Cabot crown with Lebus grooving, 160 ton Ideco Shorty block, 125 ton Ideco Swivel, 40' square kelly, (new) 45' long 5000 psi kelly hose, 17-1/2" x 44" Oilwell table with bushings, 10'H x 300,000# capacity Cabot substrcuture (3-piece), 5' x 3,000# Cabot pony sub, 5000' 4-1/2" flush joint drill pipe, (6) 6" x 20' drill collars (3 spiral), 4-1/2" 150 ton BJ elevator, (2) mud tanks, shale shaker, catwalk, dog house, many extras Price: $500,000

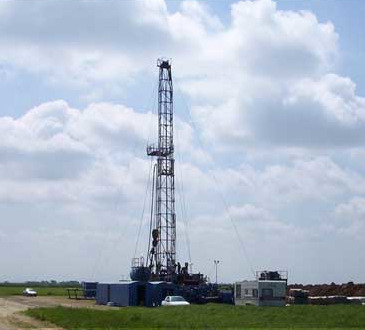

COOPER LTO-550 BACK IN DRILLING RIG (Ref#4482Td)
8500’ depth, double drum drawworks, Detroit Series 60 diesel engine, Alliston CLT-5860 transmission, Pemco 104’ x 260,000# hydraulically raised and scoped derrick, mounted on Hopper trailer, 18’ x 18’ x 12’5” high floor 450,000 lb capacity, 45’ racking platform with rotary drive system 17-1/2” National rotary table, 150 ton travelling block/hook combination with (4) 1” sheaves, Oilwell PC150 swivel, 4-1/4” x 41’ square kelly, Baash Ross square drive kelly bushings. HydraCat system for makeup/breakout, air spinning chain, Pullmaster 8000 lb hydraulic winch for main line, GD HKK air tugger.
(2) Gardner Denver PZ8 triplex mud pumps p/b (1) Detroit 12V-2000 diesel engine with 5x6 centrifugal pump.
(2) tank mud system with 320 bbls capacity, linear hsale shakerws, mud hopper, (2) 5 x 6 centifugal pumps, mud dock and pill pit
(2) 230kw generators p/b Series 60 engine in enclosed 8’x40’ house, doghouse.
Price on Request

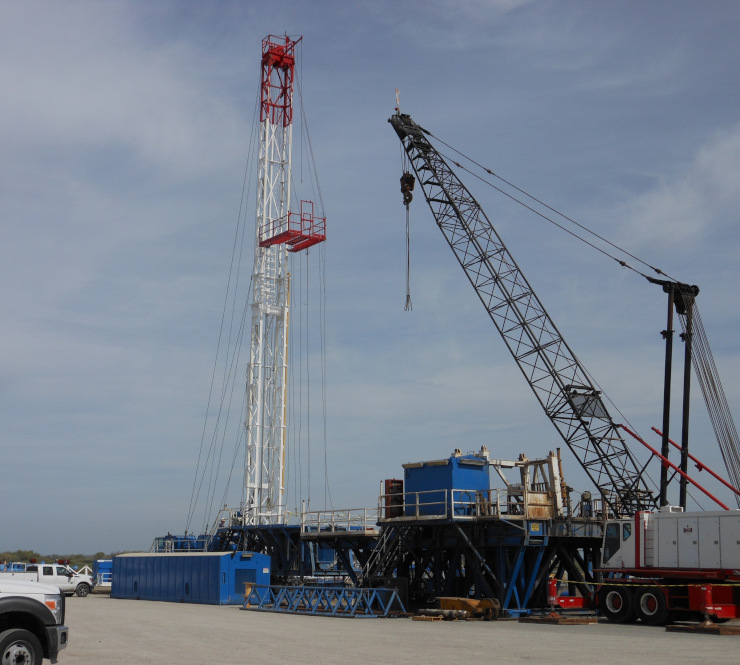

COOPER LTO-550 DRILLING RIG (Ref#4482Tg)
8500’ depth rating, double drum drawworks, (1) Detroit Series 60 engine, Allison 6-speed automatic transmission, SKM 104’ x 260,000 lb telescoping derrick, 20’ x 16’ x 13’H box type subbase, 50’ racking platform, National 17-1/2” rotary table p/b Detroit Series 50, Allison HT740 transmission, McKissick FIG-663 150 ton travelling block hook combination, Oilwell PC150 swivel, 4-1/4” x 41’ square kelly, square kelly bushings, HydraCat system for makeup and breakout, air spinning chain, (2) Pullmaster M8 8000 lb hydraulic winches.
(2) Mud King MZ9 triplex pumps p/b MTU 12V2000 engines, 20 gallon pulsation dampener, 5 x 6 charging pumps.
(2) tank mud system 320 bbl capacity
(2) 280 kw generators in 40’ x 8’ house, doghouse
Price on Request

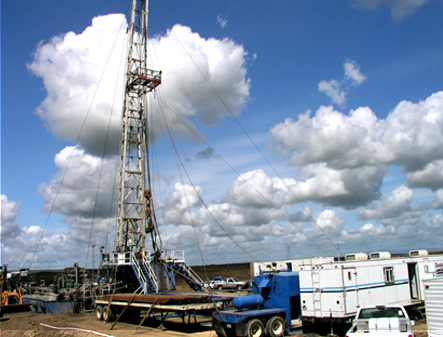

HOPPER GXXTA DRIVE IN DRILLING RIG (Ref#4482Tc)
8500’ depth rating, Double drum drawworks, Detroit Series 60 diesel engine, Allison CLBT-750 transmission, 106’ x 300,000# hydraulically raised and scoped derrick, trailer mounted, 18’ x 18’ x 12’5H floor with 450,000# capacity, 45’ racking platform, rotary drive system. Emsco RA30-4 150-ton travelling block/hook combination with (4) 1” sheaves, King Oil Tool 15MB swivel, 4-1/4” x 41’ square kelly, Baash Ross square drive kelly bushings. HydraCat system for makeup/breakout, air spinning chain, Pullmaster 8000 lb hydraulic winch for main line, GD HKK air tugger.
(2) Continental Emsco F650 triplex mud pumps powered by (1) MTU 8V-2000 650 hp engine, pump complete with Hydril 10 gal pulsation dampener and 5 x 6 charging pump
(2) tank mud system with 260 bbl capacity with single shale shaker, mud hopper, (2) 5x6 centrifugal pumps, mud dock and pill pit.
(2) 230kw generators p/b Series 60 engine in enclosed 8’x40’ house, doghouse.
Price on Request

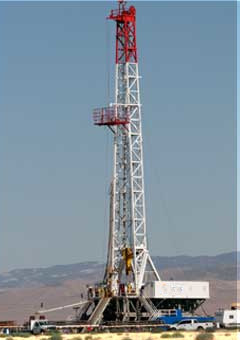

BDW 800-MX DRILLING RIG (Ref#4482Te)
13,500’ depth rating, 1000hp single drum drawworks with Lebus grooving for 1-1/4” line, Eaton Airlex auxiliary brake, (2) Detroit Series 60 engines, Allision TC955 torque converters, DSI 136’ x 550,000 lb static hook load derrick with 6-sheaves, 10’ x 10’ racking platform, DSI box on box 50’ x 26’ x 20’ subbase with casing capacity 550,000 lbs and setback capacity 330,000 lbs. Emsco 27-1/2” rotary table, 350 ton traveling block hook bomination, Oilwell PC300 swivel, 4-1/4” x 41’ square kelly, square drive kelly bushings, HydroCat for makeup and breakout, Varco SSW40 pipe spinner, kelly spinner, Pullmast M18 18000 lb hydraulic winch, Pullmast M12 2000 lb hydraulic winch, Pullmast M5 5000 lb hydraulic winch.
(2) Mud King PZ-9 triplex mud pumps p/b (1) MTU 12V-2000 engine, 20 gallon pulsation dampener, 5 x 6 charging pumps.
Mud system 385 bbl capacity
(2) 475kw generators p/b Detroit Series 60 in generator house 40 x 8’, doghouse
Price on Request

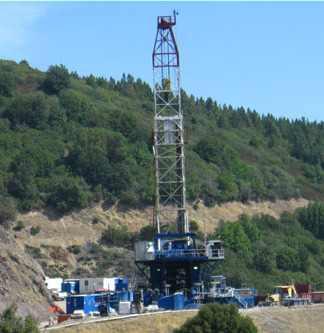

BDW 800-MX DRILLING RIG (Ref#4482Tf)
10,500’ depth rating, 1000 hp single drum drawworks with Eaton Airlex aux brake, (2) Detroit Series 60 engines, Allision TC955 torque converters, Ideco 107’ double mast x 375,000# hydraulically raised and cable scoped. 30 x 20’ box on box subbase 16-1/2” floor height 700,000 lb load capacity, floor opening 10’ x 6’ for blow out equipment (clear height 12-1/2’), optional 10’ pony base. Emsco 27-1/2” rotary table, Ideco 265 ton traveling block hook combination, Emsco LB300 swivel, 4-1/4” x 41’ square kelly, square kelly drive bushings,
(2) Mud King MZ9 trilex mud pumps p/b (1) MTU 12V-2000 engines, 20 gallon pulsation dampener, 5 x 6 charging pumps
(2) tank mud system 400 bbl capacity
(2) 280 kw generators in 40’ x 8’ house, doghouse
Price on Request

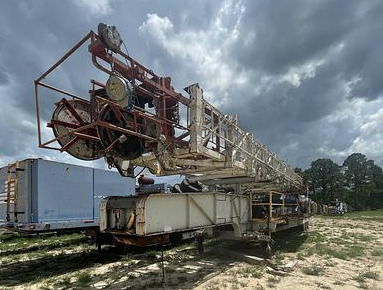

IDECO 1000 HP DRILLING RIG (Ref#9965Tb)
Manufactured 2004, 117’ SHL telescoping mast, mounted on 3 axle, 358,000# static hook load, 5-sheave travel block, racking board, mounted on 3 axle trailer, optional 250 ton top drive/power swivel Price as is: $700,000 Price reworked cleaned, painted and certified: $1,300,000
IDECO H44-CSD RAMBLER AND IDECO H37 BACK IN RAMBLER DRILLING RIG PACKAGE (Ref#13044R)
Includes:
700 HP IDECO H44-CSD RAMBLER DRILLING RIG Manufactured 1983, Model #DIR706SBS, mounted on a 6 axle carrier w/ H-44 CSC drawworks, Parkersburg 22 in. hydromatic brake,
(2) 3406 Cat motors w/Allison torque converters & Allison 6 speed transmissions, 113 ft. x 278,000# Ideco derrick, Cabot 13 ft scissor type substructure 350,000# rating, 17-1/2 in rotary table
IDECO H37 BACK IN RAMBLER DRILLING RIG Mounted on a 5 axle carrier, powered by a 550 h.p. Detroit 12V 71 motor. Equipped with Parkersburg hydramatic brake, derrick is removed and not avaialble, telescoping substructure (telescopes from 9' - 12'), Oilwell 17-1/2" rotary table, rig can rack 7000' of 4-1/2" drill pipe and (24) 6" collars, Martin Decker weight indicator, hydraulic hoist with 5/8" line mounted on rig
Mud Systems:
(2) Gardner Denver FXN pumps with gauges, mud valves, pulsation dampener, powered by 350 h.p. Cummins big cam motors, (1) 500 bbl, two-pit mud system with; (1) single shale shaker, (1) single cone Swaco desander, (2) 10 h.p. electric mud agitators, (1) mud hopper, (1) 50 h.p. electric motor driving a 6 X 8" centrifugal pump for mixing mud. One 35 h.p. electric motor driving a 5 X 6" centrifugal pump for desanding.
(1) Wilson 600 duplex powered by 379 Cat, (1) Wilson 600 duplex powered by 3406E Cat w/6 speed manual transmission, 2 pit 800 bbl system w/ Brandt 4 x 5 dual shakers; (3) 10 hp elec. Mud agitators; (2) 5 x 6 centrifugal pumps w/50 hp elec. motors; (1) 6 x 8 centrifugal pump w/50 hp elec. Motor, (1) Swaco single cone desander, (1) mud hopper, and lights.
Drill pipe, collars and kelly, handling tools
(4) 8" drill collars with (2) handling subs
(18) 6" drill collars with (12) handling subs
6,000' (approx) 4 1/2" 16.60# grade E
(1) 40' 5 ¼" hex Kelly with, drive bushing, upper and lower kelly cocks.
(1) Foster 77 kelly spinner
(1) IDECO 150-ton swivel
(1) set 8" D.C. slips
(1) set 6" D.C. slips
(1) set 4 ½" D.P. slips
(1) type C drill collar clamp
(1) set 4 ½" bottle neck drill pipe elevators
(1) Pair type B rotary tongs W/ extra tong heads
(2) Type B rotary tongs
(1) 4-1/.2 in. elevators
(1) 4-1/2 in. slips
(1) 6 in. drill collar slips
(1) 8 in. drill collar slips
(2) 6 5/8 Reg. in. handling subs
(10) 6" drill collar handling subs
(1) set 6 ft. bails
(20) 6 in. drill collars w/4-1/2 XH connection
(4) 8 in. drill collars w/6-5/8 regular connection
6,600 ft. 4-1/2 in. XH drill pipe (20% of the pipe was inspected and it all came out double white band)
40 ft. 5-1/4 hex Kelly (looks new)
(1) Foster 77 kelly spinner
Pressure Control Equipment:
(1) 11" 3,000# Cameron SS double B.O.P. with blind, 4 1 /2 and 2 7/8" rams.
(1) 11" 3,000# G.K. hydril annular.
3,000# choke manifold with two manual chokes and 2" choke line.
Gas buster with burner and 6" burner lines.
(1) 11 in 3000# Shaffer LWS double dressed w/4 ½ & CSO rams; (1) 11 in. 3000# GK Hydril; 1 - 3000# choke manifold w/2 in. manual chokes; 1 gas buster; 1 gas burner w/6 in. lines
Other Miscellaneous Equipment
Telescoping doghouse plus 6,000 gallon diesel tank mounted on tandem trailer. Inside doghouse is knowledge box, drilling recorder, automatic driller, and two electric heaters.
13 ft. telescoping doghouse mounted on 48 ft trailer w/6000 gal. fuel tank; satellite automatic driller; 2 pen geograph recorder; 2 elec. heaters.
40' light plant house with (1) 125 kw Cummins powered generator,(1) 205 kw CAT powered generator. Also inside is one three station closing unit with 55-gallon accumulator equipped with electric duplex pump and a nitrogen back-up system.
45 ft. skid mounted light plant; (1) 150 kw Cat powered generator; (1) 205 kw Detroit powered generator; 3 station Koomey closing unit w/triplex pump (50 gal. reservoir) w/3 bottle nitrogen backup; 14 locker change room
30' change house with 12 lockers.
275 bbl. skid mounted frest water tank
350 bbl skid mounted brine tank
350 bbl round skid-mounted brine tank.
275 bbl round skid-mounted fresh water tank W/ circulating pump.
Electric Mathey wire line unit
Four sheave shorty combinations block hook combination, 1" drilling line.
Rig-Lite Lighting system
Handling Tools
(1) Mathey wire line unit
(2) collar tubs
(1) Combination catwalk/ collar tub w/ beaver slide.
(4) pipe tubs
(4) 30 ft. triangle pipe racks (2 sets of pipe racks; 4 individual runners)
(1) - 125 ton Gardner Denver swivel
(1) - 150 ton Web Wilson block hook combo
PACKAGE PRICE: $190,000
LTI 3000 HP LAND DRILL RIG WITH TOP DRIVE (Ref#12730T)
Brand new rig, built 2009
Commissioned in 2014 and upgraded in 2015, 25,000’ drill depth
LTI Cantilever 156’ mast rated at 1,700,000 hook load
LTI substructure with 38’ floor height
LTI drawworks with 4500 hp nominal input hp and rated depth of 25,000’
LTI 37-1/2" rotary table
LTI 1,500,000# crown block
LTI swivel / Top drive 750 tons
(5) Cat 3512C and (1) Cat C15 power system
(3) LTI mud pumps
(8) 4000 bbls mud tanks
(3) NOV shale shakers
Cameron BOP stack
Detailed inventory Available
Price: $11,250,000
BREWSTER N46 DRILL RIG (Ref#4464T) 750 hp, (2) Cat D3412 750 hp each engines, Parkersburg V80 hydromatic brake, 131’ x 450,000# Dreco 10-line derrick, 16’ Dreco 400,000 lb capacity substructure, (2) National 8P80 triplex mud pump with Cat D398 engines, National 350 ton block, National 350 ton hook, Gardner Denver S400 400-ton swivel, 27-1/2” National C275 rotary table, BOP equipment, mud system, (2) 420 kw generators p/b (2) Cat 3412 engines in generator house Price: $225,000
BETHLEHEM S45 TYPE E DRILLING RIG (Ref#8871Ta)
(2) Cat 3406 engines (375 hp each), drill line with Lebus grooved drum, 15” double Hydromatic brake, Foster make up and breakout catheads, new 350 Quincy air compressor on compound, 3” centrifugal pump compound drive, 450,000# DSI 45-S derrick, new 4-1/2’ stand pipe and valve, racking board, 10 line crown for 1-1/8 line, eight boxes and lines, raising lines, 8000# rotary hose. DSI 12’ substructure, 43’L x 20’W, V door ramp, doghouse beams on sub, 18” Brewster rotary, National 4 sheave block and BJ hook, Coilwell C150 swivel, 5-1/4 x 41’ hex kelly, 25’ top doghouse, 500 bbl skid mounted water tank, generator house, pipe racks, automatic driller, BOP and accumulator, tongs, 20” Oilwell pump w/Cat 379, 16” GD-FXO mud pump, (3) 650 bbl pits, 2500 gal fuel tank, elevator bails, elevators, weight indicator, 1500’ of 1-1/8” drill line Price on Request
UNIT U34 DRILL RIG (Ref#8871Tb)
Double drum drawworks with 1” Lebus grooving, Foster make up cathead, Foster breakout cathead, 15” double Hydramatic brake, (2) Cat 3305 engines (250 hp each, low hours), twin disk 10000 torque converters, 2-engine compound with Westinghouse air compressor, 2-1/2” Mission wash down pump, 97’ x 250,000# Lee C Moore derrick with 5-sheave groove crown, 3” rotary hose, 17-1/2” Oilwell rotary table, 11’H substructure 34’L x 20’ wide, (1) National C250 mud pump w/Cat 3408, (1) National mud pump with D353 Cat engine, Baash Ross DBM 330 100 ton traveling block with shorty hook, Oilwell 60C swivel, 500 bbl skid mounted water tank, 5-1/4 x 41’ hex kelly, generator house, BOP, doghouse, 7000’ 3-1/2” 13.30# G-E hard band drill pipe, 15 drill collars, BJ eongs, pipe racks, catwalks Price on Request
(2) OIME SL5 DRILL RIGS (Ref#12454R) – one stacked in Michigan, one drilling in Florida
Rig A (Semi Complete) - Michigan
Drawworks: SHARED
Mast: Parco 131’ 550,000# static hook load, 6 sheave crown block
Substructure: Parco 18.5’ split level, 467,000# rotary load, 357,000# simultaneous set back
Dog House: 10’ by 40’ skidded with electric panel, lockers, and knowledge box
8' by 40' skidded with tool room & wire line unit
Pumps: SHARED
Mud System: 2 pit (940bbl) system with two 6x8 cent. pumps with 75HP electric motors, 4 Brandt electric mixers, Smico 22 sq ft shale shaker. SHARED: 12 cone de-silter, 2 cone de-sander
Instrumentation: MD 500,000# wt. ind.– tong, torque – pump pressure gauges, satellite internet system, MDTotco EDR (electronic drilling recorder) w/rig sense package (internet access available), Wildcat automatic driller
Rotary: Twister 27 1/2"
Travelling: 250 ton Block-Hook SHARED 250 ton Swivel, 5 ¼ hex kelly
Electrical: (2) 350KW generators powered by series 60 Detroit Diesel engines,
Mounted in 10’ wide by 40’ long house, with electric panel and 150KVA Transformer
BOPS: SHARED
Auxiliary Equipment: (1) 5 ton Air Tugger
Drill String: SHARED
Rig B (Complete) – Florida
Drawworks: OIME SL-5 with (2) 520 HP cat 3406 Eng., WPT 3-24 water brake
Mast: Parco 131’ 550,000# static hook load, 6 sheave crown block
Substructure: Parco 18.5’ split level, 467,000# rotary load, 357,000# simultaneous set back
Dog House: 10’ by 30’ skidded with electric panel, lockers, and knowledge box
Pumps: #1 Weatherford MP9 1000 HP Triplex, powered by Cat 398
#2 Weatherford MP9 1000 HP Triplex, powered by Cat 398
Mud System: 2 pit (900 bbl) system with two 5 x 6 cent. Pumps with 50 HP electric Motors, 4 Brandt electric mixers, 12 cone de-silter, 2 cone de-sander, MCM 27 sq. ft. shale shaker
Instrumentation: MD 500,000# wt. ind. – tong, torque – pump pressure gauges
Rotary: Dreco 27-1/2"
Travelling: 250 ton Block-Hook, 250 ton Swivel, 5 ¼ hex Kelly
Electrical: (1) 300 KW generators powered by John Deere Diesel Engine, (1) Cat SR4 Generator 250 KW, 3406 engine, Mounted in 10’ wide by 40’ long house, with electric panel and 150 KVA Transformer
BOPS: 13 5/8" 10,000# double SL type, 13 5/8" 5,000# Annular, Valvecon 120 Gallon, 5 station accumulator – mounted in generator house, 4" 10,000# Choke manifold, 4 ft. x 19 ft. gas separator, buster, and burner
Auxiliary Equipment: 13 5/8" 10,000# double SL type, 13 5/8" 5,000# Annular, Valvecon 120 Gallon, 5 station accumulator – mounted in generator house, 4" 10,000# Choke manifold, 4 ft. x 19 ft. gas separator, buster, and burner
Drill String: 4-1/2" 16.6# X-95 drill pipe (12,000 ft.), (16) 4-1/2" 42# HW drill pipe, (15) 6 ¼" drill collars, (3) 9" drill collars
PACKAGE PRICE FOR ONE COMPLETE RIG AND ONE SEMI-COMPLETE RIG: $525,000 for everything
MAC 400 DRILLING RIG (Ref#10567R) Rated to 8500’ with 4-1/2” drill pipe, MAC 400 drawworks with hydromatic brake, catheads, p/b Cat 3408 (450 hp) with air clutch and torque converter, Gardner Denver FXN 7-1/2 x 14” duplex mud pump p/b Cat 3408, 98’ x 280,000# PJ Services Mfg free standing mast, scopes with kig pin and two axle dolly, can rack 8500’ of 4-1/2” drill pipe, 125 kw generator p/b Detroit 671 in steel house with all switchgear and transformer (2nd gen set inoperable and not included), steel house includes parts cabinets, work area and storage. One piece substructure 8’H x 15’W x 34’L with 4’ fold down wings, enclosed parts house and large volume tank, top dog house scopes dow into 400 bbl water tank, heater, lockers, knowledge box, 17-1/2” Brewster rotary table, 4-1/2” square kelly, 3-sheave (6 lines) hook/block grooved for 1-1/8” line, 150 TSM swivel with new wash pipe and packing, Regan 10” annular blowout preventor, Mud system with single cone desander, Mission Magnum mud mixing pump, mud stirring guns (rig uses earthen pits), lower kelly valve, inside BOP. Kelly hose (new), vibrator hoses (3), 2500’ 1-1/8” drill line (new), mouse hole, mouse hole driller, weight indicator, tong torque gage, Bear automatic driller, one-pen drill recorder, Sure Shot deviation instrument, mud gauges, 3 sets pipe racks, type C rotary tongs, lights for derrick, substructure, mud pump, generator house, drill collar slips, 2 sets drill pipe slips, Quincy 325 air compressor with electric motor, slick line wireline unit, mounted on single axle trailer. Stacked since 2010, located USA PRICE: $225,000
NATIONAL 11O-UE DRILLING RIG (Ref#4482Th)
Triple drilling rig with 16,500’ depth rating with 4-1/2” DP, double drum drawworks 1500 hp Lebus grooved for 1-3/8” line, makeup and breakout catheads, driller’s console, NOV control panel, p/b (2) GE 752 traction motors, Baylor 2025-A brake, 143’ x 730,000# static hook load derrick, pin tpe, crown block, 60” sheaves, 42’ x 27’ x 27H box on box subbase with rotary beams, V Door ramp, stairs, rails, National 27-1/2” rotary table, National 545 350 ton with (5) 45” sheaves, National P400, 5-1/4 x 42’ square kelly, pipe spinners, kelly spinner, air tuggers.
(2) Weatherford MP16 1600 hp mud pumps p/b (2) GE 752 motors, 20 gal pulsation dampeners and 5 x 6 charging pumps
Mud system
Generators
SCR Unit
Tanks and houses
Price on Request
