DRILL RIG BARGES FOR SALE
DRILL RIG BARGE (Ref#4199)
26’ x 10’ x 3’ barge, steel hull, hydraulic drill tower powered by Perkins 404 50 hp diesel engine, separate hydraulic system for spuds powered by 8 hp Honda engine, spud extensions, built for drilling holes and installation of piling in hard ground (where you can’t use pile driving method), 8” – 14” diameter, depth of water 3’ – 25’, depth of hole 6’ – 12’. Located Florida Price: $110,000

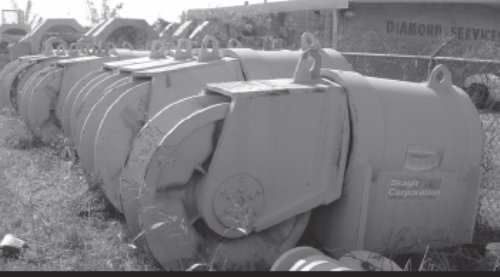

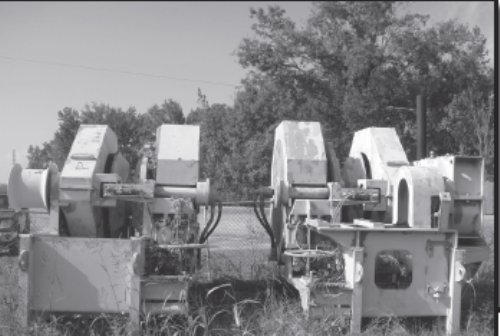

SKAGIT TEN POINT MOORING SYSTEM (Ref#584)
This is the forerunner of the Dynamic Positioning System
WMD-44 specifications:
2-3/4” diameter of ABS chain
Cast steel wildcat with standard five-whelp design for ABS chain
800,000 max pounds wildcat brake holding power
72” diameter x 12” width wildcat brake dimensions
Wildcat clutch: air operated jow clutch on the pinion. Manual override is provided.
Air actuated chain stopper will hold and release loads in excess of the breaking strength of 2-3/4 ” ABS chain.
Approximate weight: single wildcat: 52,000 lbs., Double wildcat 87,000 lbs.
(4) Skagit model WMD-44 double wildcat anchor windlasses, each consisting of two side-by-side units (one with motor and one less motor), arranged to be coupled together and powered by P&E 350 HP electric motors
(2) Skagit model WMD-44 single wildcat anchor windlasses powered by P&H 350 HP electric motors.
(2) Control cab assemblies (one cab to control two double and one single windlass)
(10) Skagit model DCF-44 deck mounted bullseye chain fair-leads for 2-3/4 ” chain
(1) Martin Decker tension indicating system (calibrated to exceed break strength of a 2-3/4” chain.
PRICE ON REQUEST
