60’ x 28’ LIFT BOAT  (Ref#4200)

28' x 60' x 6'-10",  4’10” hull draft", 6’ Safety Factored Draft, 7’ Air Gap, (3) 61'-6" Legs w/8" x 18" Pads, 60,000# Deck Load Capacity, (2) GM 8V92 Detroit diesel engines (300 hp), twin screw, (2) Detroit 271 30kw generators, (2) Quincy F350 air compressors, 40’ max water depth, 50 kt wind speed, 5’ wave height. Jacking Specifications: 10’min max jacking speed, 25 kt wind speed, 5’ wave height. Transit 60 kt wind speed, 5’ wave height.  EBI C20 10-ton crane 55’, 14’ x 24’ cabin, sleeps 6, galley, head, documented, located Louisiana  Price:  $550,000

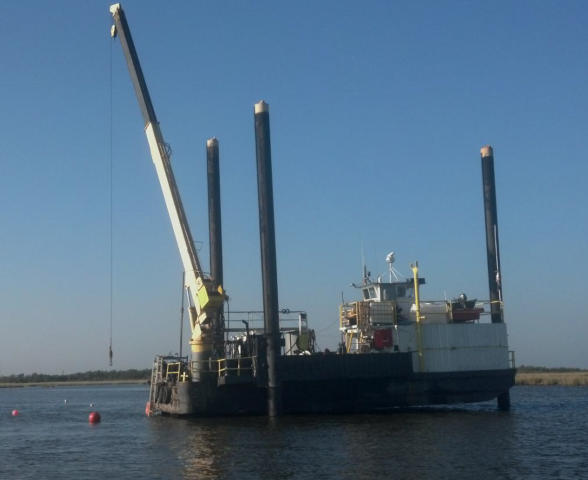

65' x 24' LIFTBOAT (Ref#3165)

Built 1975. 65' x 24' x 4'6", draft 4'. Open deck area: 1000sqft. Deck capacity: 60,000lb. (3) legs, 24" x 72', 3/8" wall thickness. Pontoons: 20' x 7' x 2' depth. Leg extension: 60'. Max water depth: 45'. 10 ton EBI Crane CC-20-40-60 with 60' boom. Navigation equipment. Main engines: (2) 671 Detroit Diesels, total 360 HP with TwinDisc reduction gear 2:1. Speed 8 knots. Fuel burn rate: 8 gph. Generator: (1) Isuzu 4BG1 (30kw). Capacities: Fuel 1200 gal, Potable water 800 gal. Living quarters: Berths for boat crew (2), Berths for work crew (4). Galley. Appraisal price with COI (this vessel does not have current COI): $765,000, appraisal price without COI: $450,000. Current COD. Boat off job July 1st 2018. Extensive survey available. Located Louisiana.
As an example, estimated cost to transport to Colombia: $75,000.
Price: $375,000

64’ x 42’ x 34’ JACKUP BARGE  (Ref#3924)

70’ overall length x 42’ overall beam, 6’ depth, 1292 sq ft open deck area (38’ x 27’), 40 mt max deck cargo, 3 legs (105’ x 24”), pads 20’L x 10’W x 1.5’ depth raked, 10 ton EBI hydraulic crane with 55’ telescoping boom, 5 ton hydraulic crane with 30’ boom, living quarters with 15 berths, central A/C, 4 heads, galley with seating for 8, main engines: (2) GM671 209 hp each, twin disc reduction gears, 30 kw generators, 1500 gal fuel capacity, 1500 gal potable water capacity, 200 gal lube oil capacity, 200 gal hydraulic oil capacity, navigation equipment, 6 – 6.5 knots speed, 80’ max water depth, located South America  Price:  $500,000 USD

40' x 38' x 3.9' JACKUP BARGE (Ref#3613)

Built 2009. Made up of (4) Ravestein 40' x 8' x 4' sections. Legs (4) 59' x 20". Deck load capacity: 5tons/sq.meter. Jacking system: Dual hydraulic cylinders. Perkins hydraulic power pack. Modular construction for transportation. Mobilization for trucking: (2) 45' flatbed trailers, (1) 60' trombone trailer, 50 ton crane. Located Panama. Price: $425,000

S-70 FLEXIFLOAT JACKUP BARGE  (Ref#3988)


Estimated year of manufacture 2008,
(5) 20 x 10 x 7 floats
(7) 40 x 10 x 7 float
(4) Jacking spuds (approximately 70’ tall)
(2) hydraulic power packs in a 20’ container
Located Alaska
Price:  $1,200,000

LIFTBOAT JACK UP VESSEL (Ref#1127)

Manufactured 1983, 79'L x 59'W x 8'H, open space 2800 sq ft, 192 GT, 150 NT, main deck carg o 105 (kips). (4) 148' x 42" legs (5/8" wall thickness braced), 22'L x 12'W x 24" depth pads (raked all sides), 70 ton crane with 80' boom, 10 ton aux crane with 50' boom. Main engines: (2) 12V71N GM (680SHP), 3:1:1 reduction gear (twin disc ratio), 8 knots. (2) Deep Well Pumps, (2) electric 400a welding machines, satelilite phone with internet, (2) 80kw Delco generators w/(2) 6V71N GM engines, 7500 gal fuel, 9800 gal potable water, navigation equipment, 28 berths (including boat crew), central A/C and heaters, Lounge w/Satellite TV, 4 heads, galley seats 16, laundry. Maximum working depth 90' (w/25' air gap), Max sea conditions: 4' hard, 5' soft bottom, 8-10 fpm speed. Working in USA Price: $5,700,000

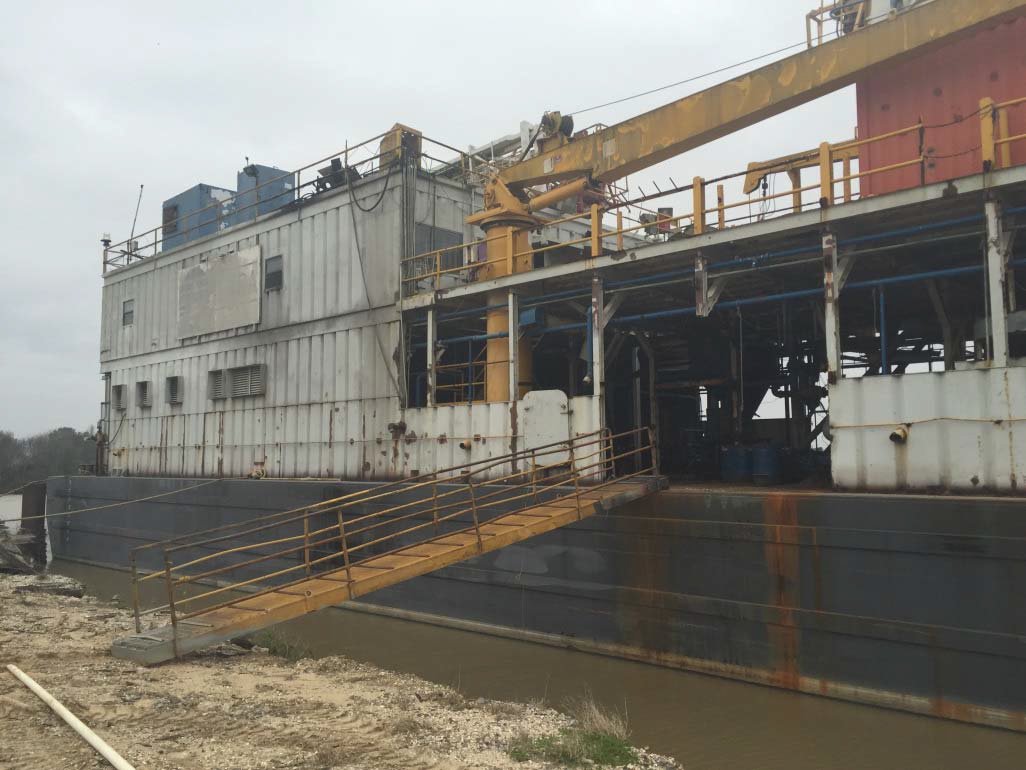

15,000' DRILL RIG BARGE – OILWELL 760E 2000 HP (Ref#1686)


Built 1997
Oilwell 760E 2000 hp drawworks with (2) GE Model 752 WOO electric motors and Model 7838 Electric brake
142' x 21' x 800,000# derrick
27.5" rotary table
(2) 15 tons cranes
700 bbl mud pump system with desander, desilter, mud agitators, (3) 5 x 6 pumps driven by 75hp motor
(4) Cat 3512 diesel engines with (4) 1050kw generators
SCR 4-bay power management system
40 man accommodation module
185' x 54' x 16' barge
Slot 40 x 10'
Gross tons 1342
Net tons 1342
Extensive inventory available
Condition: Poor
Cold stacked, located USA
Price: $1,200,000

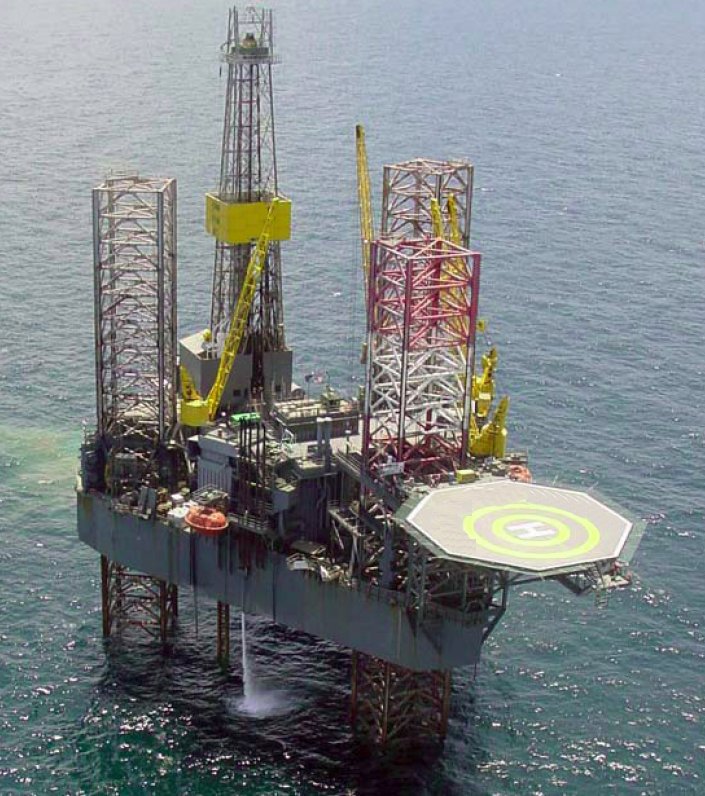

JACK UP RIG – (Ref#279M)


Drilling Depth 25,000 ft.
Dimensions and Loading Data
A) Length 248 ft.
B) Width 200 ft.
C) Depth of Hull 26 ft.
D) Number and Length of Legs 3 at 343 ft. ea. (upgradeable to 477 ft)
E) Draft Under Tow 27.5 ft. to tip of Spud Cans
G) Propulsion System 2 ‐ 1000 hp Thrusters
H) Maximum Variable Load 4539 Kips
I) Jacking System 48 Electric Motors, 16 per Leg, Elevating Speed
90 ft. per hour
J) Heliport 73 ft Diameter for S‐61
Classification and Certification
A) Country or Registry United States
B) Classification Society American Bureau of Shipping
Storage Capacity
A) Covered Sack Storage 1500 sq. ft.
B) Bulk Mud and Cement Storage 10,880 cu. ft.
C) Diesel Fuel 3768 bbls.
D) Drill Water 6676 bbls.
E) Potable Water 1127 bbls.
F) Mud Tanks 1467 bbls.
G) Sand Traps 165 bbls.
Power Plant
A) Main Power 5 – Caterpillar D‐399 TAC
5 – GE 930 KW / 1162 KVA AC Generators
4 bay Baylor SCR
B) Emergency Power 1 – Caterpillar D‐398 with 800 KW Generator
Living Quarters
A) Cabins 5 ‐ 1 Man Rooms
43 ‐ 2 Man Rooms
6 Beds in Hospital Room
Total – 97 Beds
B) Offices 4
C) Recreational Space 1 – Television Room, 1 – Billiard Room
Cranes
A) Number and Type 4 – Letourneau PCM 120
B) Rating 50 Tons at 24 Feet with 100 ft. Boom
Mooring System and Equipment
A) Number and Type of Anchors 2 – Baldt Stockless Type 10,000 lb
B) Line Size and Description 2500 ft. of 1 1/4" Diameter Rope
C) Winch Type 2 ‐ W 1500 TS, Marathon Letourneau
Life Saving and Safety Equipment
A) Lifeboats/Capsules 2 – Whitaker CA 5001 (50 man) Capsules
B) Life Rafts 4 – 25 Man Inflatable Life Rafts
Auxiliary Equipment
A) Service Air Compressors 2 – Quincy QSI 245 – 263 SCFM ea @ 150 psi
B) Bulk Air Compressors 2 – Quincy QSLP‐60 – 490 SCFM ea @40 psi
C) Sewage Treatment Omnipure Model 12MC
D) Water Makers C'Treat – 10,000 GPD
Derrick & Substructure
A) Model Lee C. Moore
B) Type 30 x 30 x 160 ft. T Leg Derrick Bolted
C) Hooked Load Capacity 1, 250,000 lbs. Static
D) Setback Capacity 450,000 lbs.
Hoisting and Rotary Equipment
A) Drawworks National 1625 UE driven by 2 GE 752 electric motors.
B) Auxiliary Brake Elmago 7838 Brake.
C) Crown Block National Type 760 FA with 7 Sheaves ‐ 1 1/2" drill time.
D) Traveling Block National Type 660 H, 500 ton, With 6 sheaves
E) Hook BJ 5500, 500 ton.
F) Power Swivel Varco TDS‐4
G) Swivel National Type P‐650, 650 ton.
H) Rotary Table National Type C‐375, 37-1/2" opening, chain driven
I) Rotary Hose 2 – 5,000PSI working pressure, 10,000PSI test.
Mud System
A) Mud Pumps 2 ‐ National Type 12P160 Triplex Slush Pumps,
B) Mud Tanks 3 – Mud pits; 1 – Slugging Pit; 4 – Sand Traps
C) Degasser Swaco Vacuum Type
D) Shale Shakers 3 – Derrick Flo‐Line cleaners over 2 – Brandt Dual Tandem
Well Control
A) Diverter Reagan KFDJ‐2000 27‐1/2", 2000 psi
B) BOP 13‐5/8" x 5000 psi Hydril Annular with 3 ‐ Cameron 13‐
5/8" x 10,000 psi U Type Rams
C) BOP Controls Stewart and Stevenson 3000 psi
D) BOP Handling 2 – 37.5 ton Air Hoists
D) Cement Unit Halliburton HT‐400, 15,000 psi (not owned)
Price: $65,000,000
