REVERSE CIRCULATION RIGS

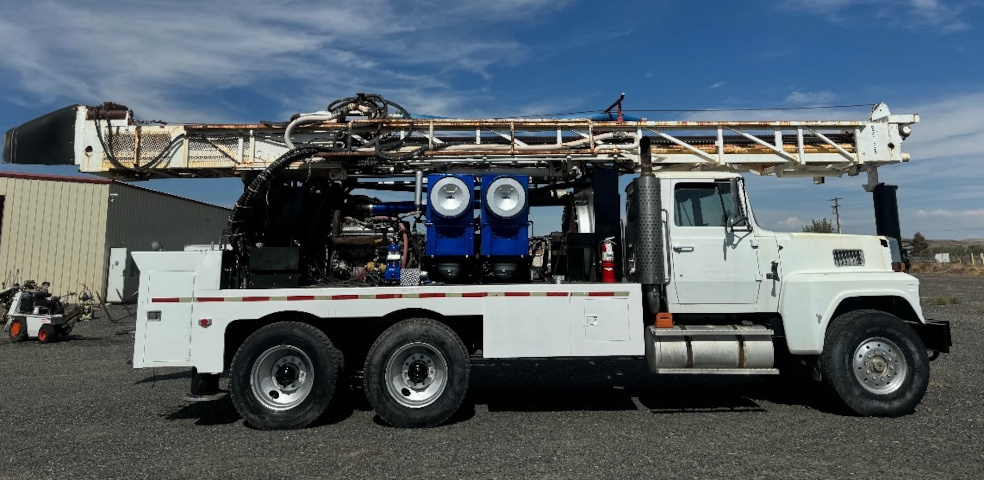

REICHDRILL 650 REVERSE CIRCULATION DRILL RIG (Ref#7927T)
Manufactured 1986, 840/350 air compressor, sliding angle mast, set up for reverse circulation, very clean, 800’ of 4-1/2” x 20’ Matrix drill pipe Price: $375,000

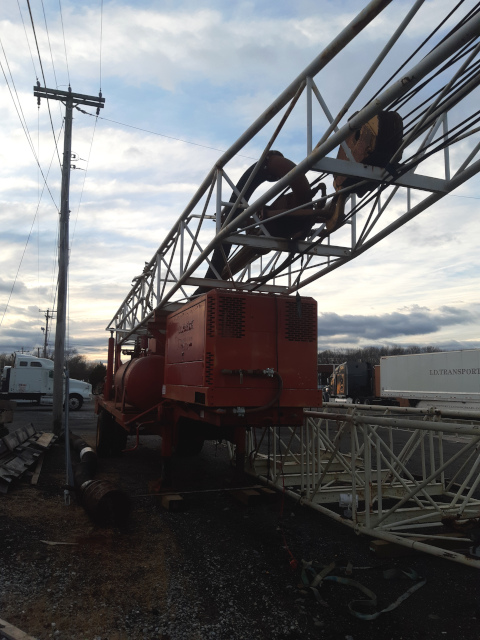

FAILING JED-A REVERSE CIRCULATION RIG (Ref#13522T)
Mounted on single axle trailer, 45’ mast, 6 part line on kelly, 5 part line on trip drum, New 471 Detroit deck engine, sandline, Murphy controls, 18” hinged flip up Failing rotary table, Wagner hydraulic weight indicator, 6” Western Rubber swivel, 24’ kelly bar, 3 hydraulic leveling jacks, no pipe or tools, ready to work Price: $350,000
SPEEDSTAR GEFCO SS-15-III REVERSRE AIR DRILLING RIG (Ref#8735T)
Manufactured 1989, 3 drum drawworks, (2) 5 x 6 deck mounted mud pumps, 500/200 Sullair compressor (new year 2000), 5” fluted kelly, hydrostatic 8” rotary table, set up for mud drilling and reverse air drilling, pulldown, hydrostatic over-air clutch, mounted on 1988 Peterbilt truck, rebuilt engine in 2017 with approx. 400 hours) Price: $195,000

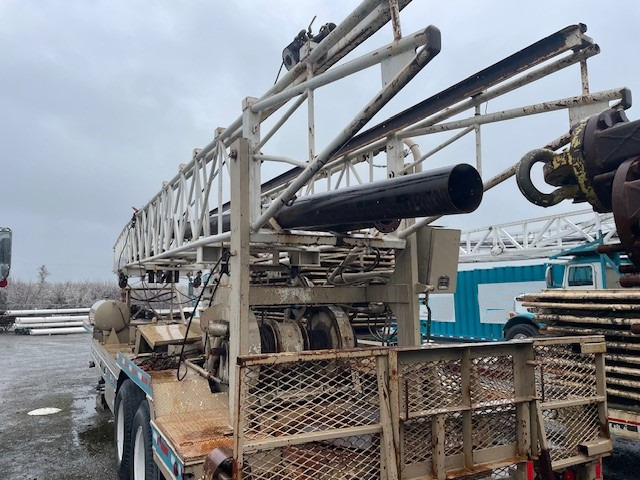

PORTADRILL RVC 1000 REVERSE CIRCULATION DRILLING RIG (Ref#6532T)

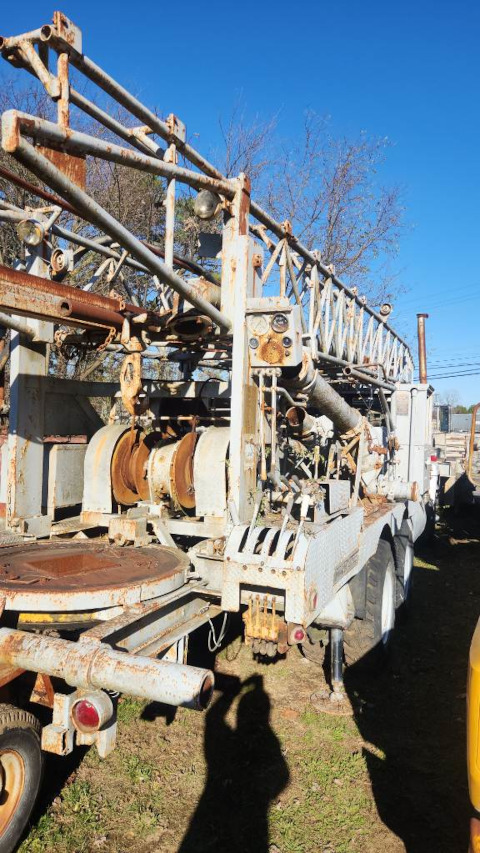

PORTADRILL RV6 DRILL RIG (Ref#3524T)
Triple drum drawworks, 35” table opening, 6” x 18’ kelly, 35’ derrick, John Deere diesel engine, Sullair 375/125 air compressor (engine needs work), 6” centrifugal pump (removed, but available), mounted on International tandem axle truck with diesel engine Price: $170,000
Available at extra cost:
(2)Goulds 12” and 10” 1000 gpm turbine pumps, shafts, 6 cylinder Detroit, new right angle drive
Elevator clamps, Moab reverse bits, platforms, 800’ reverse drill pipe and rigging

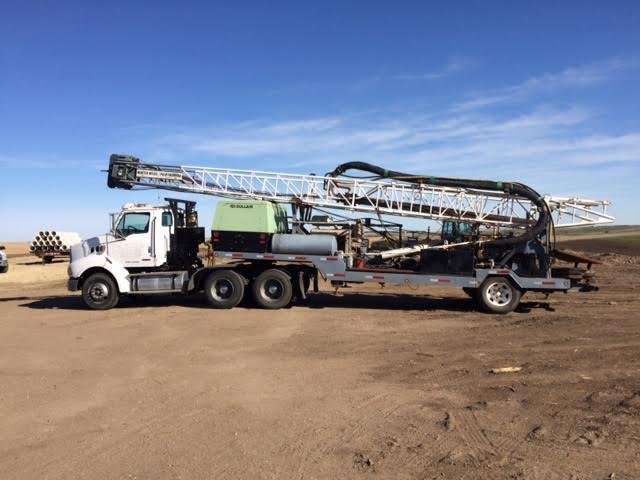

PORTADRILL RV6T REVERSE CIRCULATION RIG (Ref#7119T)
Manufactured 1977, triple drum drawworks, mounted on Stering single axle trailer with International twin screw tractor with 277 Industrial diesel engine, factory air swivel, Detroit 671 diesel deck engine, 35’ derrick, 30” opening table, 6” centrifugal pump, 6” x 18’ kelly, 2012 Sullair 375/150 air compressor with Cummins diesel engine, 2 fuel tanks, 4 leveling jacks,, 300’ of 6” x 16’ drill pipe with 1-1/4 steel air line on outside of pipe with “O” ring, tandem axle pipe trailer, has drilled 500’ wells x 28” diameter and set 16’ casing, ready to drill Price: $340,000

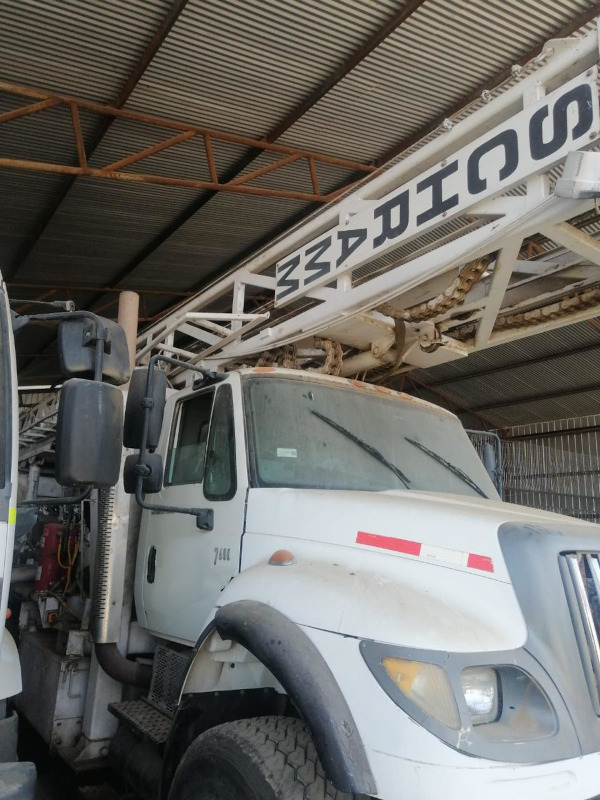

SCHRAMM T685WS-C (Ref#10786R)
Manufactured 2011, Reverse circulation, sliding angle drilling rig, Dual stage 1150/500 Sullair compressor with clutch (900/500 and 1,150/350), 93,000# pullback, tophead has 106,000 in-lbs torque, Cummins QSK19-C Tier 1 deck engine (755 hp), 30’ sliding angle mast to drill holes up to 45 degrees from vertical, swing-out style control panel on side of rig, 22” hinged table opening , 60” adjustable pipe wrench, 0-5 gal/hr air operated DTH tool lubricator, jib boom to handle pipe at angles of 45 degrees (140 degree swing, extends 40”, 1,000# capacity vertical pull), 9,600# Braden PD12C winch, foam injection (diaphragm type electric pulse pump injects foam into intake manifold of water injection pump), 35 GPM bean water injection pump, no pipe rack, 2.375” hydraulically operate blowdown valve, Side inlet swivel, set up for 4.5” x 20” RC pipe, mounted on international 7600 8x4 truck, Cummins ISM-400 engine (400hp). All equipment have been well maintained by large contractor, all major components changed based on hours suggested by Schramm and were not changed due to failure of components. New unit cost $1.8 million USD PRICE: $850,000

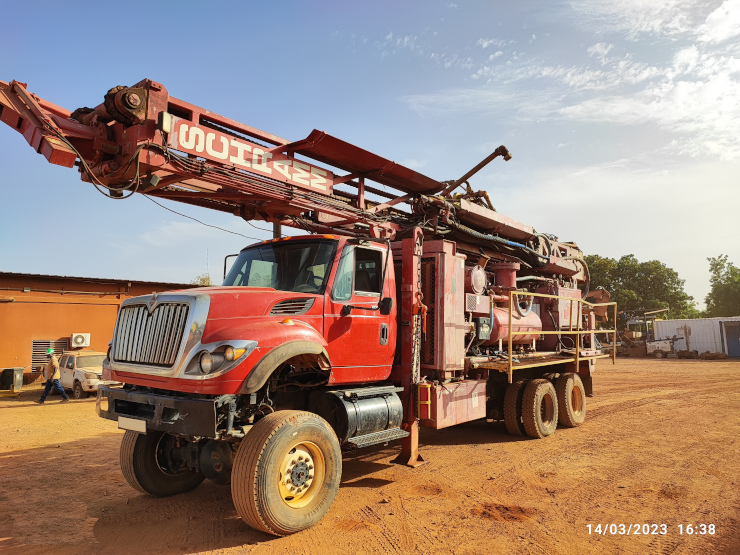

SCHRAMM T685 REVERSE CIRCULATION DRILL RIG (Ref#4300Tb)
Built 2011, sliding angle mast, Sullair 1150/500 air compressor, Cummins ISM 400V engine 25 gpm Cat Bean pump, mounted on tandem axle truck Price: $575,000

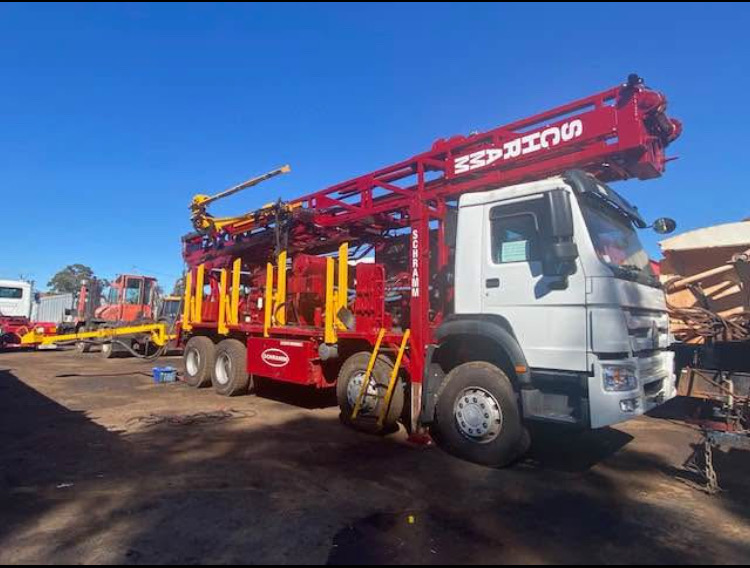

SCHRAMM T660WS REVERSE CIRCULATION SLIDING ANGLE MAST DRILL RIG (Ref#2003T)
Manufactured 2000, Sliding Angle Mast, 1050/350 Sullair air compressor, 55,000# pullback, Cummins N14 deck engine, mounted on late model 8x4 4 axle truck, new radiators, new ECU, new injectors, new hosing, new alt, starter and wiring. New KL rod loader, hinged control cabinet, survey winch or casing winch, auto breakout, hydraulic raised and rotate cyclone and cone splitter, new auto blow down, new RC swivels, new slips, table, new gauges, new tilting rod rack, we can also remove the truck and ship the unmounted drill rig for easy export to any country, located Australia Price: $635,000USD
SANDVIK DE810 MULTIPURPOSE DRILL RIG (Ref#5744T)
Manufactured 2009, 1150/350 Sullair compressor powered by Cat C15 diesel engine (less than 1000 hours), Hydraulic system is powered by Cummins 6.7L engine (less than 1,500 hours), drill depth in RC mode 190m, 954m drill depth using N coring pipe, feed force 4.5t, feed stroke 6.6m (uses 20’ rods), Feed weight 4,589kg, tophead max torque 5,095Nm/4,300ft/lbs and up to 1,556 rpm, Pull force 7.6T, 12,000# (6.6T) main winch, FMC Bean W1122 36gpm/140L hydraulic drive pump, fire suppression system, mounted on MAN TGA 41.430 8x8 truck with 430HP diesel engine and approx. 5,000 miles Price: $520,000
MIDWAY 2500 REVERSE CIRCULATION DRILL RIG (Ref#8825T)
Trailer mounted, double drum drawworks, Cat engine, 65’ x 190,000# derrick, (2) 27” rotary tables, no compressor, no mud pump Price: $435,000

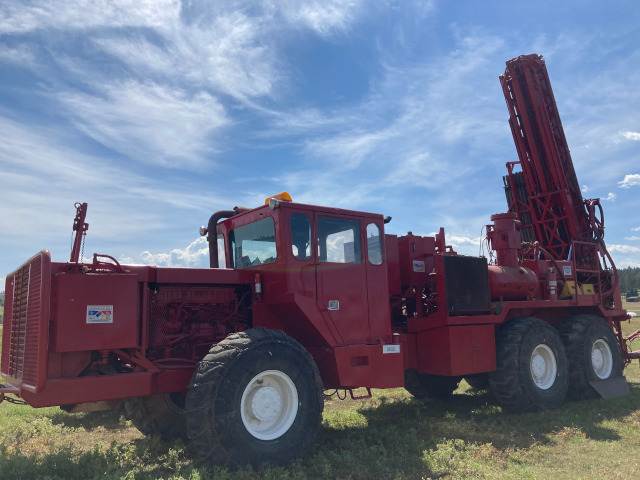

REVERSE CIRCULATION TOP DRIVE DRILL RIG PACKAGE (Ref#3475T)
Mounted on Ardco 6 x 6 buggy, Cat 3406 engine, 13 speed transmission (engine and transmission recently gone through), RTO 9513 gear box into sub drive box, Ramsey Model 800 winch, Sullair 750/350 air compressor, 30,000# pulldown, 53,000# pullback, 0 – 70 rpm rotation, 6280 ft/lbs, mast angle to 40 degrees, slides to ground, 1000’ depth capacity, approx. 1000’ of 3-3/4” x 15’ dual tube drill pipe, dual rear leveling jacks, 50 gpm Bean injection pump, 400 gal injection tank, Casing advance system with 100’ of 6” drill pipe Price: $375,000
NOVAMAC REVERSE CIRCULATION TRACK DRILL (Ref#1520Ta)
Manufactured 2012, angle package, QSB Cummins engine (8000 hours), 41,000 lbs hoist, PLC control remote operating station, Hiab pipe arm with clamp, pipe loader on mast, hydraulic pipe rack (carries 200m of 4” RC pipe x 3m length), onboard rack stands up to 70” for easy pipe handling, floating spindle, 4500 lbs rotary torque, 3500 lb wireline winch, 1500 lb tugger winch, water injection, hammer oiler, cyclone Price: $350,000 USD
EDM 2000 SLIDING ANGLE MAST DRILL RIG (Ref#7472T)
5 units available, set up for exploration drilling (5-150 rpm tophead in low gear) AND core drilling applications (150-1,500 rpm tophead in high gear), Max tophead torque 9,000# (800# torque@1,500 rpm), sliding angle mast which is capable of angles up to 45 degrees with 2,000mm mast dump, no air compressor, no mud pump, Cummins QSM-11 tier 3 diesel deck engine, 40,000# pullback, 40,000# main winch, high speed wireline winch for coring, FMC (bean) water pump (140l/min or 35 gpm), hydraulic rod break out, rod spinner with 11,000# breakout torque, approx. drill depths: 4.5” dual tube RC pipe – 350m, BQ coring pipe 2,800m, NQ coring pipe 2,000m, HQ coring pipe 1,500m, PQ coring pipe – 1,100m, overall weight without truck 22,000KG / 48,000#
Available rigs include:

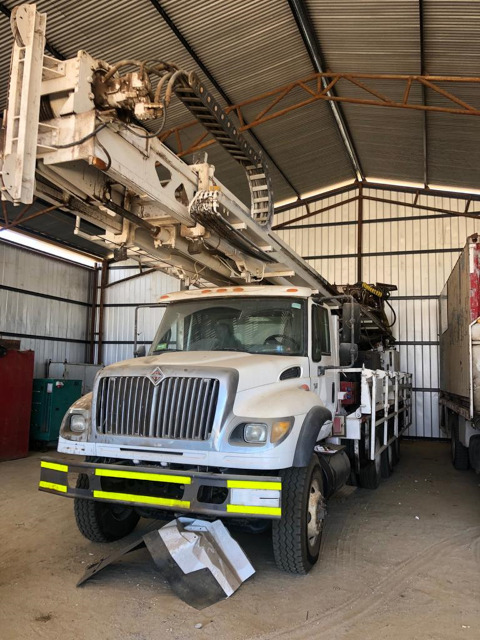

EDM 2000 (Ref#7472Ta) Year 2009, mounted on 2009 International 7600 8x4 truck Price: $685,000

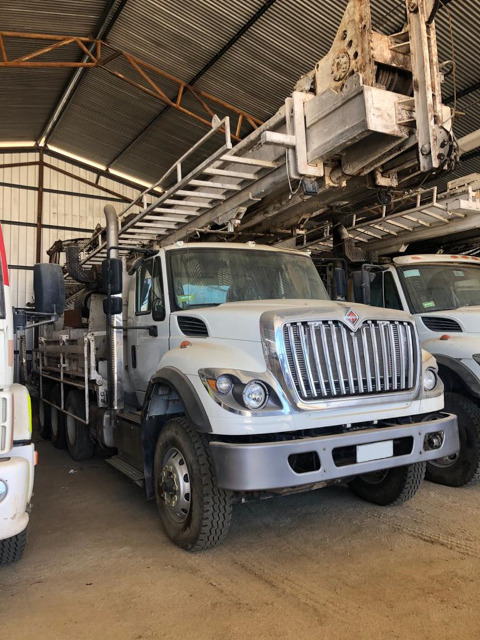

EDM 2000 (Ref#7472Tb) Year 2010, mounted on 2019 International 7601 8x4 truck Price: $685,000

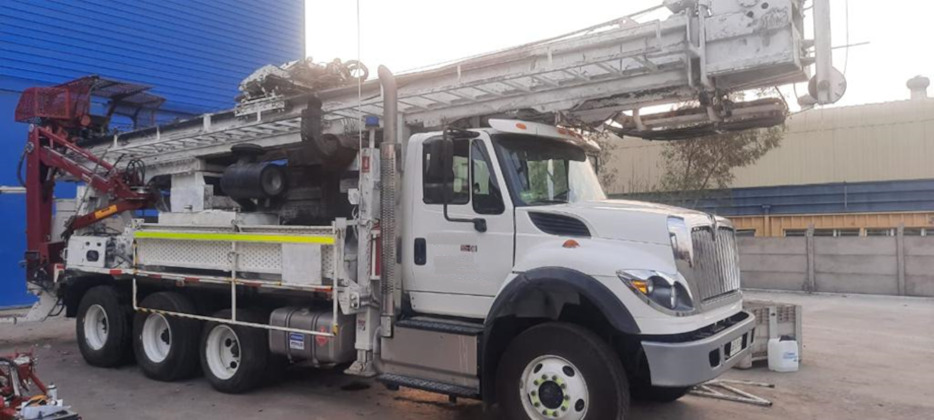

EDM 2000 (Ref#7472Tc) Year 2010, mounted on 2019 International 7500 8x4 truck Price: $685,000

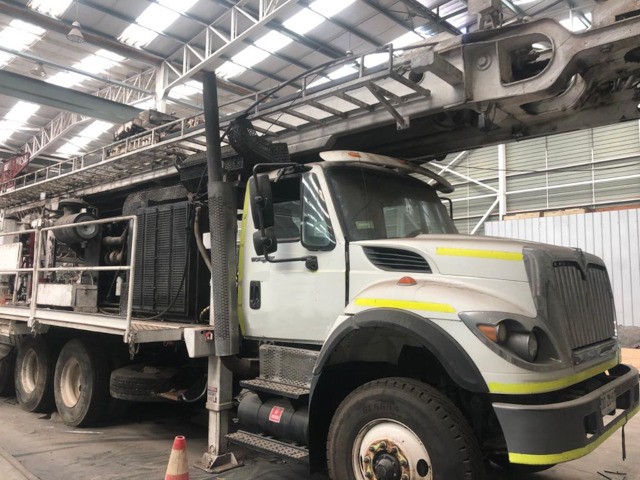

EDM 2000 (Ref#7472Td) Year 2012, mounted on 2012 International 7600 8x4 truck Price: $685,000
EDM 2000 (Ref#7472Te) Year 2012, mounted on 2012 Inrternational 7600 6 x 4 truck Price: $685,000
DANDO MULTITEC 9000 (Ref#15055R)
Manufactured 2013, 20,000# weight, mounted on crawler base, 18' height, 11.5' travel, 20,000# hoist force, 13,000# feed force, double clamps 60m – 250mm diameter, FMC LO618 triplex piston pump (36 gpm/700 psi) for coring, oiler for DTH, 4 leveling jacks, cyclone reverse circulation, comes with 500m of 3" lightweight pipe (300m brand new), located Canada Price: USD$285,000 PRICE REDUCED: $225,000 USD
IDECO (Shop Built) DIRECT OR REVERSE DRILLING RIG (Ref#11056Te)
86' x 240,000# telescoping mast, hydraulcally raised, cable scoped, double drum drawworks with twin dic air clutches, Tier 3 Cat C9 (350 hhp) engine (new 2008), Allison transmission (rebuilt 2008), auto catheads and hydraulic cylinder for make up and breakout, Hopper T drive and stub shaft dor drawworks and table drive, 27-1/2" rotary table mounted on detachable sub base, new change of direction box for table drive with rebuit spare box and gears, rig set up for 4-1/2" x 30' drill pipe, tongs, slip and dog collars, mounted on 3axle semi low boy chassis Price: $325,000
